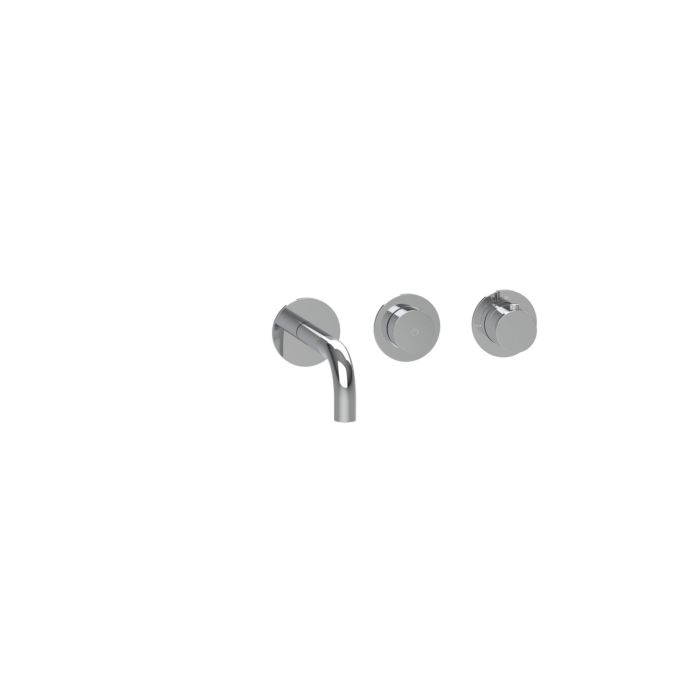

Herzbach MODUL7 PUSH TA washbasin 70.701603.1.01 wall mixer finish set 160mm chrome
Details
herzbach MODUL7 PUSH thermostat color set
for use on the washbasin consisting of:
MODUL7 Thermostat
-Rotatable thermostat cartridge to regulate the temperature range from 20°C-55°C
-Manually unlockable hot water lock at 38°C as scalding protection
-Brass operating handle
-Brass module cover Ø 70 mm with sketched temperature scale
MODUL7 PUSH flow valve
-Start + stop the water flow by pressing the PUSH flow valve
-Smooth and stepless volume control with comfortable 90° operating radius
-Brass operating handle
-Brass module cover Ø 70 mm
MODUL7 wall outlet
-Wall spout projection 160 mm
-Internal bubbler for a soft, splash-free water jet
-Brass module cover Ø 70 mm
Module center distance 105 mm
Min. operating pressure: 0.5 bar
Max. operating pressure: 5 bar
Final assembly set for attachment to MODUL7 PUSH thermostat installation body (70.710003.1.09)
Surface chrome
Manufacturer herzbach / Product group M7 CHROM
Item No. 70.701603.1.01
