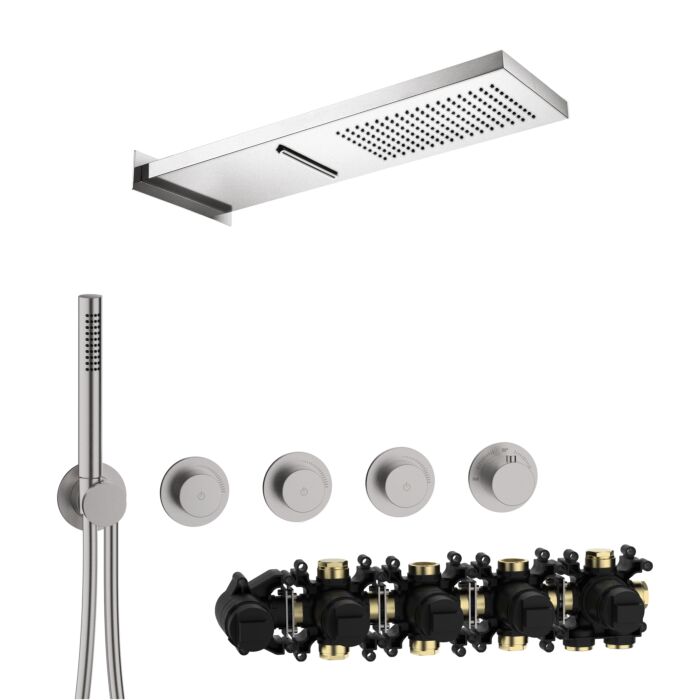

Herzbach MODUL7 PUSH thermostat set P-MU2 70.703713.1.09 537x165mm Multi 2 stainless steel

herzbach MODUL7 PUSH thermostat set P-MU2 with wall-mounted rain shower multifunction 2

and hand shower for use in the shower area consisting of:

SET SCOPE
70.730003.1.09 MODUL7 PUSH thermostat installation body
70.703003.1.09 MODUL7 PUSH thermostat color set for 3 consumers
11.661600.2.09 LIVING SPA wall rain shower 537x165mm Multi 2

MODUL7 PUSH thermostat installation body
-for 3 consumers

MODUL7 thermostat
-Rotatable thermostat cartridge to regulate the temperature range from 20°C-55°C
-Manually unlockable hot water lock at 38°C as scalding protection
-Stainless steel operating handle
-Stainless steel module cover Ø 70 mm

2 MODUL7 PUSH flow valves
-Start + stop the water flow by pressing the PUSH flow valves
-Smooth and infinitely variable quantity regulation with a comfortable 90° operating radius
-Stainless steel operating handles
-Stainless steel module panels Ø 70 mm

MODUL7 shower holder set
-Shower connection elbow with concealed hose connection
-MODUL7 shower hose 1500 mm with rotating cone
-1-jet stainless steel hand shower
-Stainless steel module cover Ø 70 mm

LIVING SPA wall rain shower multifunction 2 square
Spray type: rain / surge
Dimensions 537mm x 165mm
Installation height 23 mm with wall panel
with fastening material for surface-mounting on the wall
Clean effect

Module center distance 105 mm
Min. operating pressure: 0.5 bar
max. operating pressure: 5 bar
Integrated backflow preventers and dirt traps
intrinsically safe against backflow
Matt brushed stainless steel surface
Manufacturer herzbach / product group M7 SETS IX
Item No. 70.703713.1.09
