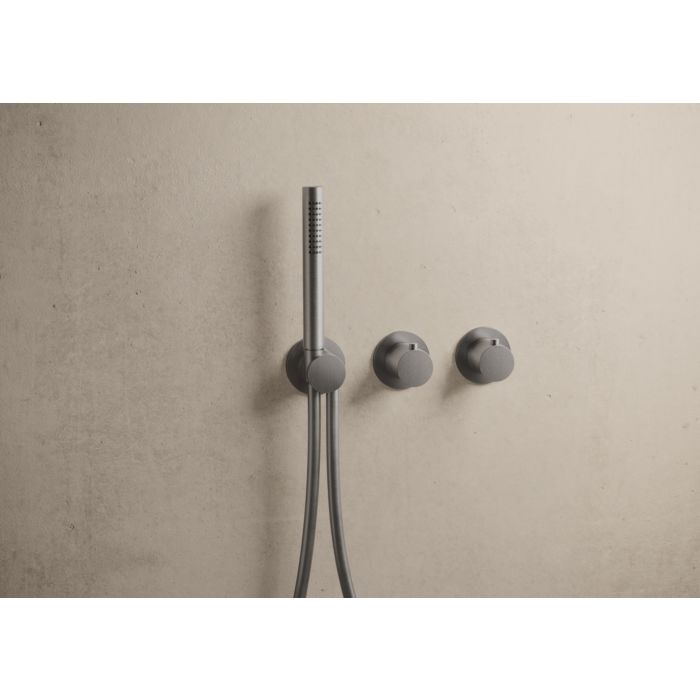

Herzbach MODUL7 Thermostat Finish Set 70.701001.1.40 1 Consumer Black Steel
Details
herzbach MODUL7 thermostat color set for 1 consumer
for use in the SPA / shower area consisting of:
MODUL7 Thermostat
-Rotatable thermostat cartridge to regulate the temperature range from 20°C-55°C
-Manually unlockable hot water lock at 38°C as scalding protection
-Stainless steel operating handle
-Stainless steel module cover Ø 70 mm with sketched temperature scale
MODUL7 flow valve
-Smooth and stepless volume control with comfortable 90° operating radius
-Stainless steel operating handle
-Stainless steel module cover Ø 70 mm
MODUL7 shower holder set
-Shower connection bend with concealed hose connection
-MODUL7 shower hose 1500 mm with rotating cone
-1-jet stainless steel hand shower
-Stainless steel module cover Ø 70 mm
Module center distance 105 mm
Min. operating pressure: 0.5 bar
Max. operating pressure: 5 bar
integrated backflow preventers and dirt traps
intrinsically safe against backflow
Final assembly set for attachment to MODUL7 thermostat installation body (70.710001.1.09)
Surface PVD Black Steel
Manufacturer herzbach / Product group M7 IX PVD BL
Item No. 70.701001.1.40
