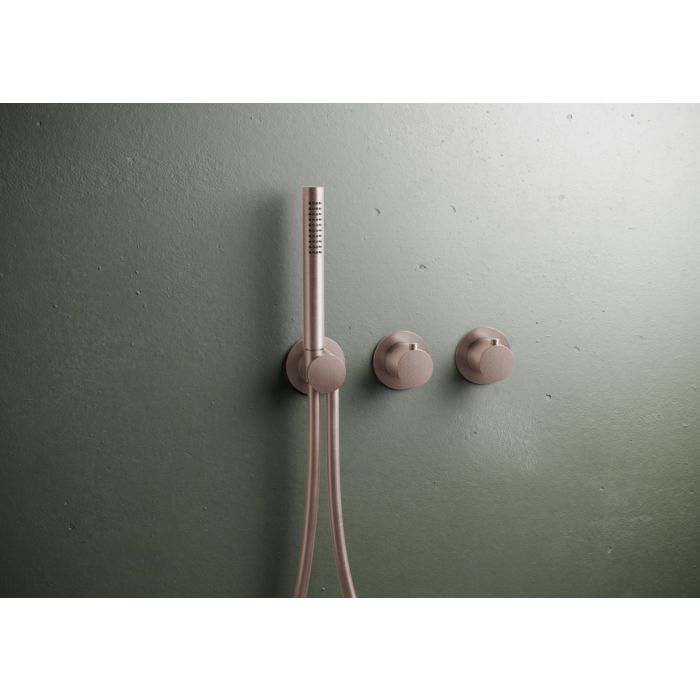

Herzbach MODUL7 thermostat finished set 70.702001.1.39 2/3 consumers Copper Steel

herzbach MODUL7 thermostat color set for 2 / 3 consumers

for use in the bath / shower area consisting of:

MODUL7 Thermostat
-Rotatable thermostat cartridge to regulate the temperature range from 20°C-55°C
-Manually unlockable hot water lock at 38°C as scalding protection
-Stainless steel operating handle
-Stainless steel module cover Ø 70 mm with sketched temperature scale

MODUL7 shut-off and changeover valve
-ceramic 2 / 3 way diverter
-Smooth and stepless volume control with small operating radius
-Comfortable separate consumer selection through haptic locking point
-Stainless steel operating handle
-Stainless steel module cover Ø 70 mm

MODUL7 shower holder set
-Shower connection bend with concealed hose connection
-MODUL7 shower hose 1500 mm with rotating cone
-1-jet stainless steel hand shower
-Stainless steel module cover Ø 70 mm

Module center distance 105 mm
Min. operating pressure: 0.5 bar
Max. operating pressure: 5 bar
integrated backflow preventers and dirt traps
intrinsically safe against backflow
Final assembly set for attachment to MODUL7 thermostat installation body (2 consumers > 70.720001.1.09 ; 3 consumers > 70.730001.1.09)
Surface PVD Copper Steel
Manufacturer herzbach / Product group M7 IX PVD CO
Item No. 70.702001.1.39
