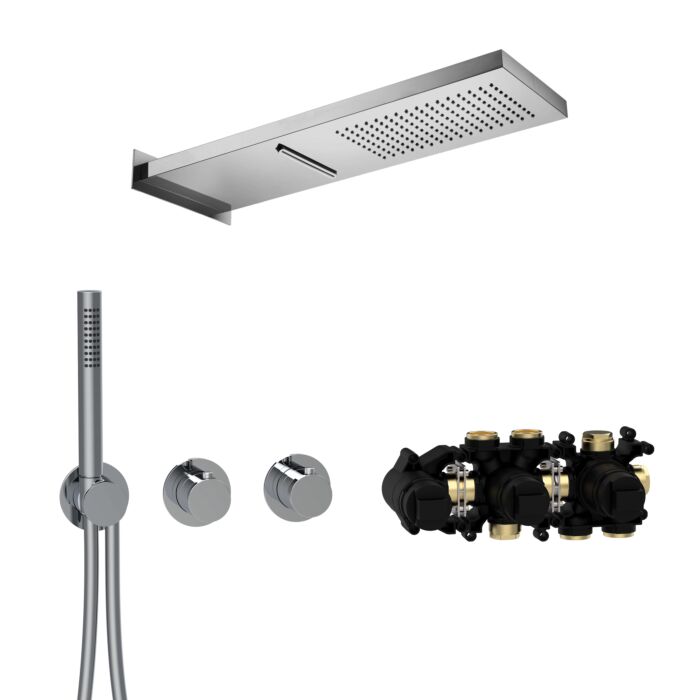

Herzbach MODUL7 thermostat set T-MU2 70.703711.1.01 537x165mm Multi 2 chrome

herzbach MODUL7 thermostat set T-MU2 with wall-mounted rain shower multifunction 2

and hand shower for use in the shower area consisting of:

SET SCOPE
70.730001.1.09 MODUL7 thermostat installation body
70.702001.1.01 MODUL7 thermostat color set for 3 consumers
11.661600.2.01 LIVING SPA wall rain shower 537x165mm Multi 2

MODUL7 thermostat installation body
-for 3 consumers

MODUL7 thermostat
-Rotatable thermostat cartridge to regulate the temperature range from 20°C-55°C
-Manually unlockable hot water lock at 38°C as scalding protection
-Brass control handle
-Brass module cover Ø 70 mm

MODUL7 shut-off and diverter valve
-ceramic 3-way diverter
-smooth and infinitely variable quantity regulation with a small operating radius
-Conveniently separated consumer choice through haptic locking point
-Brass control handle
-Brass module cover Ø 70 mm

MODUL7 shower holder set
-Shower connection elbow with concealed hose connection
-MODUL7 shower hose 1500 mm with rotating cone
-1-jet brass hand shower
-Brass module cover Ø 70 mm

LIVING SPA wall rain shower multifunction 2 square
Spray type: rain / surge
Dimensions 537mm x 165mm
Installation height 23 mm with wall panel
with fastening material for surface-mounting on the wall
Clean effect

Module center distance 105 mm
Min. operating pressure: 0.5 bar
max. operating pressure: 5 bar
Integrated backflow preventers and dirt traps
intrinsically safe against backflow
Chrome surface
Manufacturer herzbach / product group M7 SETS CHROME
Item No. 70.703711.1.01"

MODUL7 thermostat set T-MU2 70.703711.1.01

• 537x165mm Multi 2 Chrome
