Herzbach MODUL7 thermostat set T-RB250 70.702711.1.01 wall arm rain shower 250mm chrome

herzbach MODUL7 thermostat set T-RB250 with rain shower

and hand shower for use in the shower area

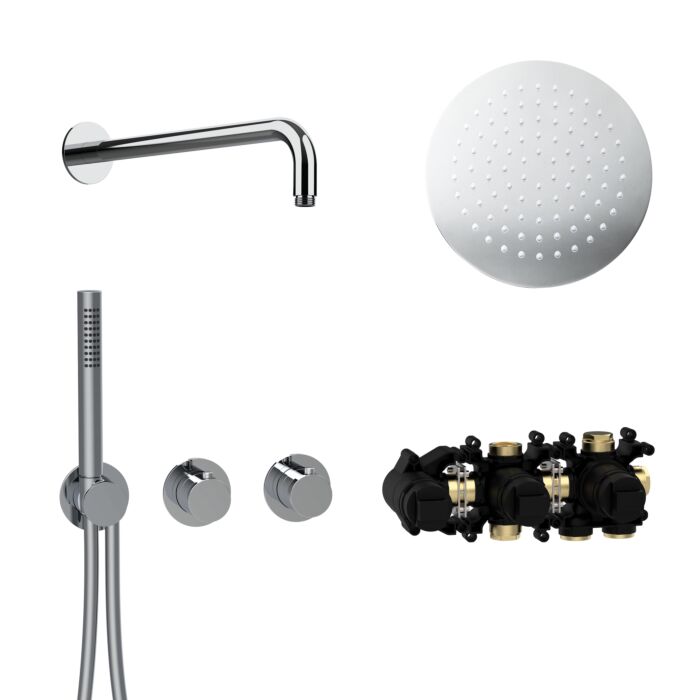

SET SCOPE
70.720001.1.09 MODUL7 thermostat installation body
70.702001.1.01 MODUL7 thermostat color set for 2 consumers
11.960350.1.01 LIVING SPA wall arm 350 mm, Ø 70 mm
11.600250.1.01 LIVING SPA Slim rain shower Ø 250 mm

MODUL7 thermostat installation body
-for 2 consumers

MODUL7 thermostat
-Rotatable thermostat cartridge to regulate the temperature range from 20°C-55°C
-Manually unlockable hot water lock at 38°C as scalding protection
-Brass control handle
-Brass module cover Ø 70 mm

MODUL7 shut-off and diverter valve
-ceramic 2-way diverter
-smooth and infinitely variable quantity regulation with a small operating radius
-Conveniently separated consumer choice through haptic locking point
-Brass control handle
-Brass module cover Ø 70 mm

MODUL7 shower holder set
-Shower connection elbow with concealed hose connection
-MODUL7 shower hose 1500 mm with rotating cone
-1-jet brass hand shower
-Brass module cover Ø 70 mm

LIVING SPA wall arm
- Throat 350 mm
- Round angled shape
-1/2"" connection thread
-Brass cover Ø 70 mm

LIVING SPA Slim rain shower
-Diameter Ø 250 mm
-Clean effect

Module center distance 105 mm
Min. operating pressure: 0.5 bar
max. operating pressure: 5 bar
Integrated backflow preventers and dirt traps
intrinsically safe against backflow
Chrome surface
Manufacturer herzbach / product group M7 SETS CHROME
Item No. 70.702711.1.01"
