Hewi 801 E-support arm 801.50.72574 900 mm, apple green, flush / function button, red ring
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 500
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

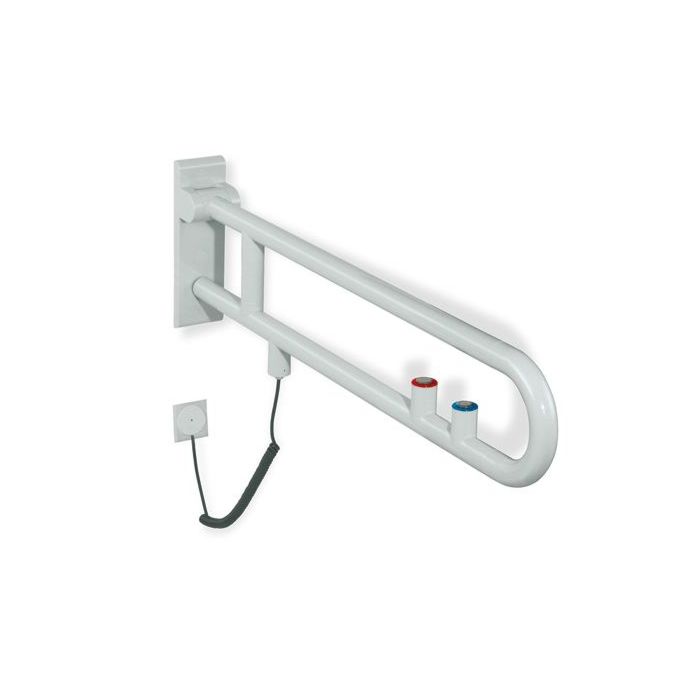

Hewi 801 E-support arm 801.50.72574
- two parallel
- arranged one above the other
- rods joined by a connecting arch
- loadable up to 100 kg
- can be folded up and braked down
- with continuous
- Corrosion-protected steel core and wall plate made of polyamide with an integrated steel core
- covert
- Corrosion-free and tested HEWI fastening material for different wall structures (please order separately)
- 78 mm wide and 259 mm high
- Rods Ø 33 mm
- Button with a blue ring to trigger the WC flush
- Button with a yellow ring to trigger a freely definable function
- Keys with protection class IP67
- Spiral cable with free cable ends for wall connection
- with white cover for flush-mounted box
- Control voltage max. 30V = SELV
- PELV
- Switching current up to max. 2A
- suitable for all common concealed cisterns with electr. control
- made of polyamide
