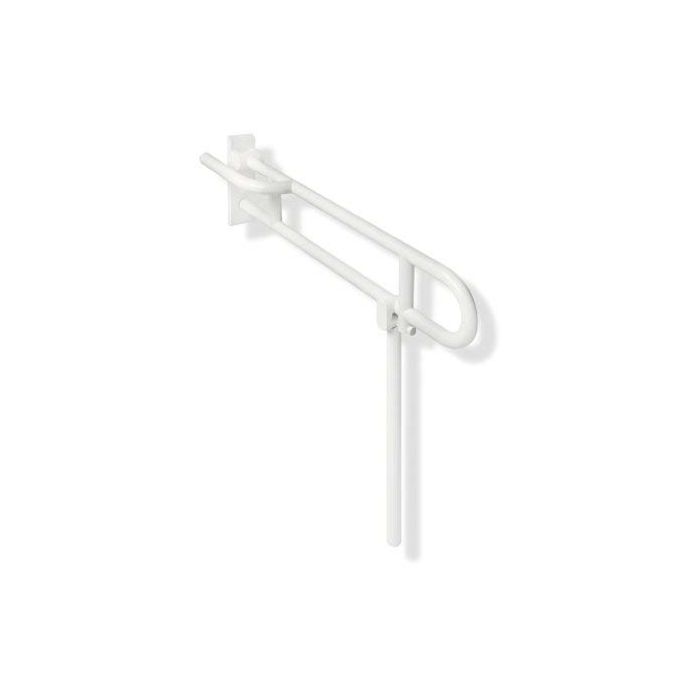

Hewi 801 Hewi support rail 801.50.812LS99 850 mm, left version, pure white, support load up to 300 kg
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 500
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Hewi 801 hinged support rail 801.50.812LS99
- with a second connecting web and additional wall support
- Floor support made to measure
- to absorb vertical forces
- can go up u. braked folded down u. When folded up, they can be turned to the left or right to the wall depending on the version
- with continuous
- Corrosion-protected steel core and wall plate made of polyamide with an integrated steel core
- covert
- Corrosion-free and tested HEWI fastening material for different wall structures (please order separately)
- When installing on lightweight walls, backing made of plywood panels with a thickness of at least 30 mm is required
- 78 mm wide and 259 mm high
- Rods ø 33 mm
- vertically loadable up to 300 kg
- Can be loaded horizontally in the direction of the additional wall support up to 100 kg
