Hewi Duo Hewi support rail 950.50.1319186 mobile, projection 850, cover signal white, sand
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 100
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

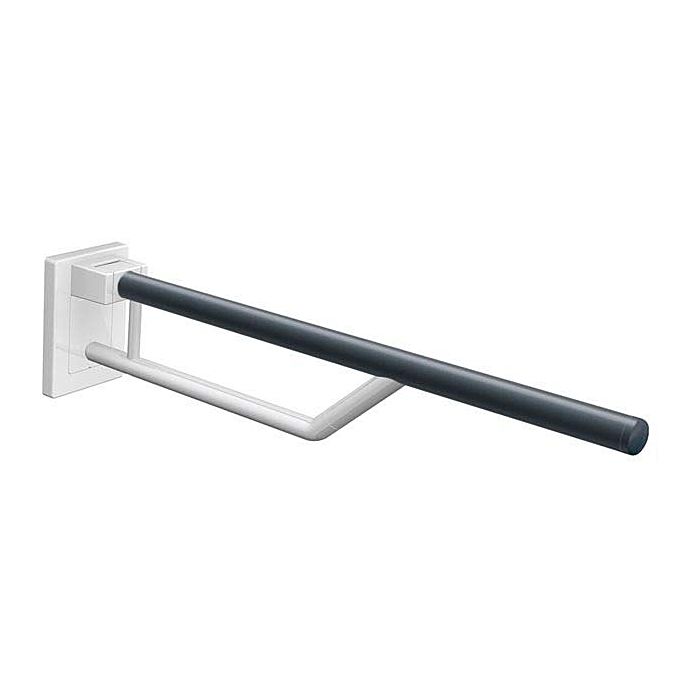

Hewi Duo support arm 950.50.1319186
- for simple and flexible retrofitting to an existing one
- pre-assembled HEWI mounting plate 950.50.014 (please order separately)
- tool-free and quick assembly through simple
- short hanging
- secured against unintentional pulling out
- Release for flexible use by means of spring actuation
- The lower beam is guided to the upper beam at an angle of 135 °
- loadable up to 100 kg
- can be folded up and braked down
- with continuous
- corrosion-protected steel core
- integrated wall plate made of steel with cover made of polyamide
- Wall plate 181 mm high and 130 mm wide
- Upper beam ø 33 mm
- Lower beam ø 25 mm
- stable three-point attachment
- for wall mounting with concealed
- Corrosion-free and tested HEWI fastening material for different wall structures (to be ordered separately)
- Upper beam in selected HEWI colors
