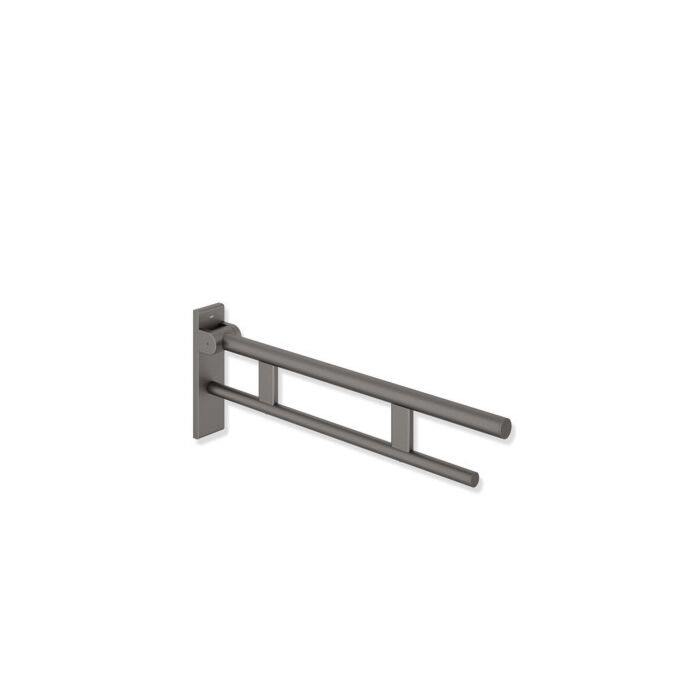

Hewi System 900 support rail 900.50.16060SC projection 750 mm, Stainless Steel powder-coated dark gray pearl mica deep matt
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 200
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Hewi System 900 support rail 900.50.16060SC
- from Stainless Steel
- two parallel
- Round handle levels arranged one above the other
- can be folded up and braked down
- maintenance-free
- permanently smooth joint
- preset at the factory
- From a 45 ° incline, the support arm lowers automatically
- In the upper position (inclination <45 °), a defined frictional force secures the hinged support handle against unintentional lowering / triggering
- 256 mm high and 75 mm wide
- Upper beam Ø 33
- 7 mm
- Lower beam Ø 25 mm
- loadable up to 100 kg
- Wall plate made of polyamide with integrated steel core and cover made of matt polished Stainless Steel
- with sealing element to seal the fastening points
