Honeywell domestic water station HS10S-1AB 1" AB, backwashable/flushable, adjustment scale

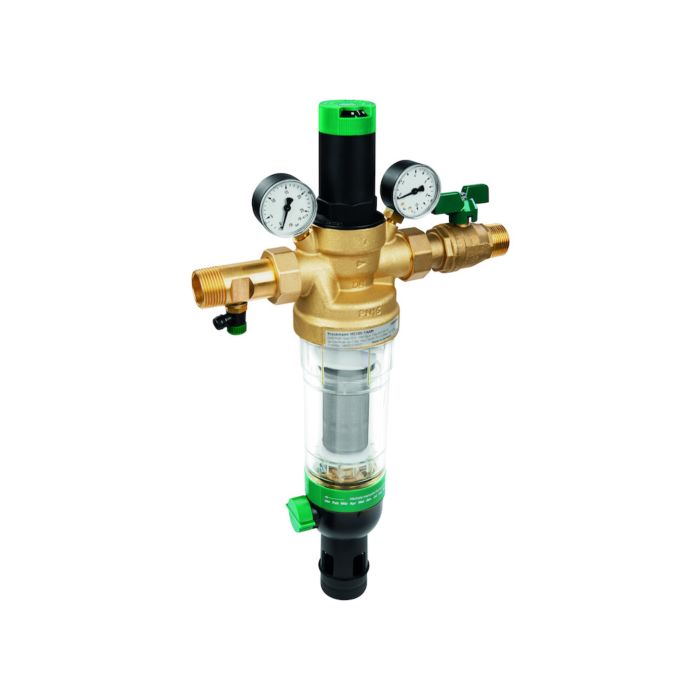

Honeywell domestic water station HS10S-1AB

• Integrated backflow preventer with test valve
• backwashable fine filter
• Pressure reducer and shut-off valve in one device
• uninterrupted supply of filtered water
• The fine filter prevents foreign particles from being flushed in and thus reduces the likelihood of corrosion
• The backflow preventer protects the drinking water network from back pressure/backflow and sucking back of harmful liquids
• The pressure reducer prevents pressure damage and reduces water consumption
• Double Spin technology for nominal widths 1/2" to 1 1/4"
• Cartridge with external rotor (allowing simultaneous cleaning of the lower and upper filter areas)
• visual functional check possible
• Even during backwashing, supply with filtered water
• Backwash system for quick and thorough cleaning of the filter with low water consumption
• Automatic backwash with bayonet connection can be retrofitted
• Filter cup made of shockproof plastic allows filter contamination to be controlled
• Pre-pressure compensation
• Filter insert and complete filter cup replaceable
• Valve insert made of plastic (completely replaceable)
• ACS certified
• all materials according to KTW
• Approved by TÜV LGA as low noise - Group 1 without restrictions
• Certifications DVGW (certification for all filters with 100 µ filter unit)
• SVGW (certification for all filters with 100 µ filter unit)
• Medium drinking water
• Min. inlet pressure 1.5 bar
• Valve body made of dezincification-resistant brass
• Plastic spring hood
• Pipe connection external thread
• Pressure range 1.5-6 bar
• Adjustment scale yes
• unloaded single-seat valve yes
• Horizontal installation position
