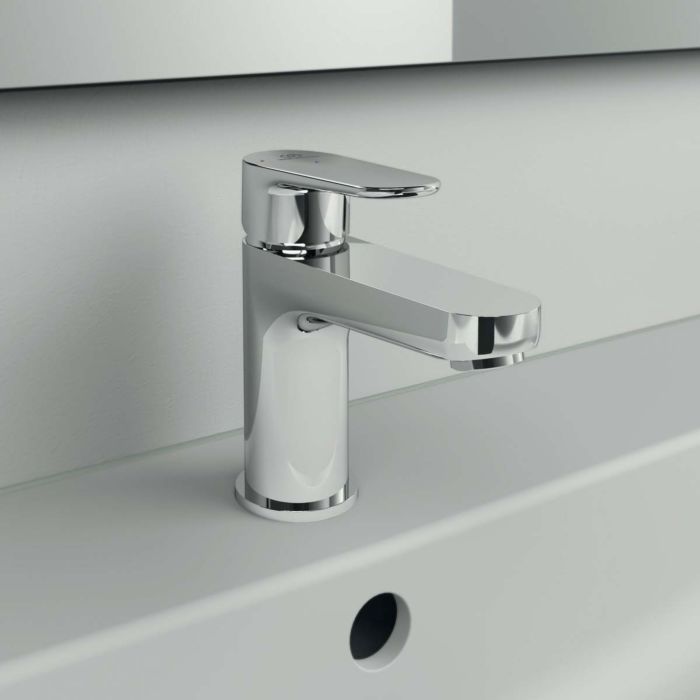

Ideal Standard Cerafine O basin mixer BC697AA without waste set, BlueStart, H80, chrome-plated
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 100
Part Number: BC697AA
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Ideal Standard Cerafine O basin mixer BC697AA
- DN 15
- rigid cast spout
- Aerator with metal ring
- short design
- pressure-independent flow regulator 5 l / min
- Base dimension 50 mm
- Projection 114 mm
- Spout height 85 mm
- flexible connection hoses G 3/8
- Metal operating lever
- with red / blue marking on the lever
- Fastening from below (EASY-Fix) with centering seal
- 28 mm cartridge with ceramic sealing washers
- Swivel range 100 degrees
- tested to 500,000 cycles ( 2000 cycle corresponds to 11 lever movements)
- integrated grease reservoir (food safe)
- maximum temperature resistance up to 95 ° C (not suitable for continuous operation)
- integrated hot water temperature limiter
- Endurance test EN 817
- Noise behavior DIN 4109
- Green 2000 pipe 2000
