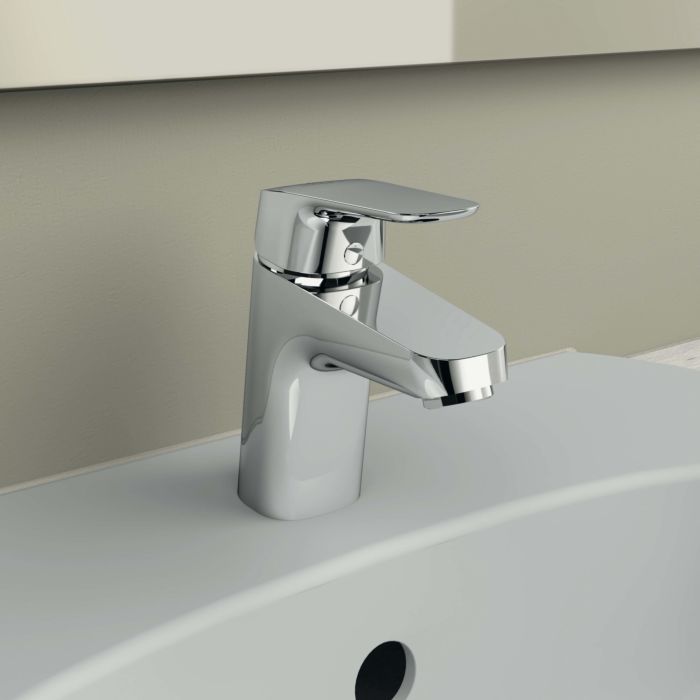

Ideal Standard CeraFlex wash basin mixer B1710AA without waste set, chrome

Ideal Standard CeraFlex wash basin mixer B1710AA

• DN15
• rigid cast spout
• Aerator with metal ring and pressure-independent flow regulator 5 l/min.
• Base dimensions Ø 47 mm
• Metal pull button drain fitting G 1 1/4
• Projection 101 mm
• Outlet height 68 mm
• flexible connection hoses G 3/8
• Metal operating lever
• permanent red/blue marking on the control lever
• Fastening from below (EASY-FIX) with centering seal
• Ø 38 mm cartridge with ceramic sealing discs
• Swivel range 100 degrees
• tested for 500,000 cycles (one cycle consists of a total of 11 different lever movements)
• Maximum temperature resistance up to 95 °C (not suitable for continuous operation)
• integrated fat reservoir (food compatible)
• integrated hot water temperature limitation
• Life test EN 817
• Noise behaviour DIN 4109
• Group 1
