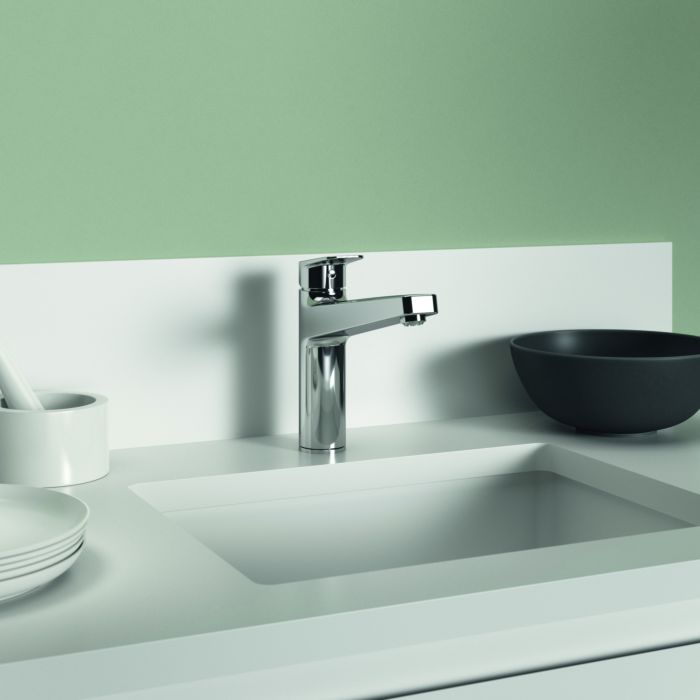

Ideal Standard Ceraplan kitchen faucet BD326AA chrome, low pressure, high spout

Ideal Standard Ceraplan kitchen faucet low pressure BD326AA

Version: high cast spout
plate/faucet hole
Ben required tap holes: 2000
External dimensions (WxDxH): 50x255x210 mm
Projection: 210 mm
Outlet height: 155 mm
Fastening type: shank screw connection from below
Faucet handle: handle made of metal
Handle with temperature marking: red and blue
Company Flow cartridge
Cartridge life test 500,000 cycles
Cartridge swivel range: 100 degrees
Cartouche translation from Stainless Steel
Hot water temperature limiter: integrated
cartridge ceramic
Fat reservoir (food grade)
Noise behavior DIN 4109: Group 2000
Service life: DIN EN 817, DIN EN 200
Flow regulator (l/min): 6 litres
low pressure
Backflow protection according to EN 1717: Other
Strahlregler open (visible)
Temperature resistance continuous load: 80 degrees
Temperature resistance peak load: 95 degrees
Temperature control: manual operation
Spout: rotatable (cast)
Material handle mount: plastic
Swivel range from the spout: 360 degrees
35 mm required tap hole diameter
Can be used for max. worktop thickness: 40 mm
Color / finish: chrome (shiny)
Finish: chrome plated
