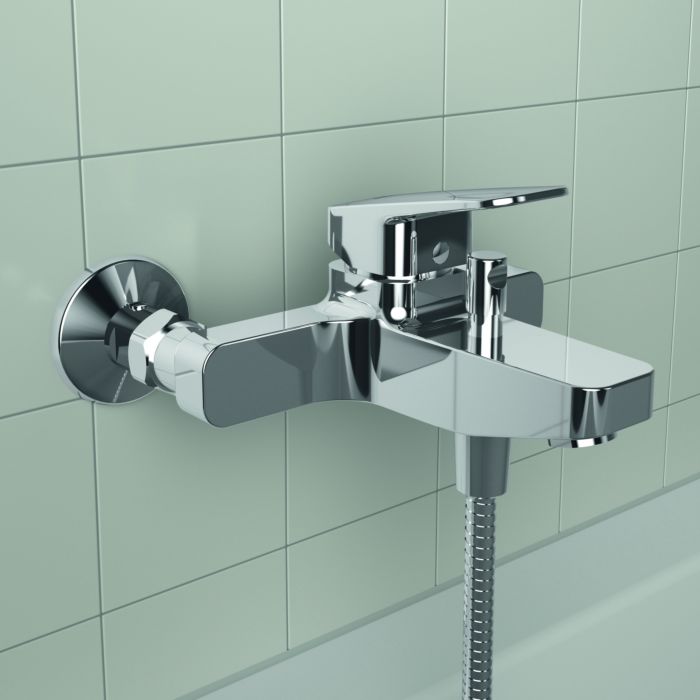

Ideal Standard CeraPlan bath mixer BD272AA surface-mounted, projection 206mm, chrome-plated

Ideal Standard CeraPlan bath mixer BD272AA

• Swiss version
• DN15
• Aerator with metal ring
• Backflow preventer
• DVGW-Intrinsically safe
• Projection 178-183 mm
• G 1/2 connection screw, lockable with rosette
• Connection dimension 153 mm
• Metal operating lever with red/blue marking on the lever
• Automatic switching from shower to bath
• Diameter 38 mm FirmaFlow cartridge with ceramic sealing discs
• Swivel range 100 degrees
• tested for 500,000 cycles (one cycle consists of a total of 11 different lever movements)
• integrated fat reservoir (food-compliant)
• integrated hot water temperature limitation
• Life test EN 817
• Noise behaviour DIN 4109
• Group 2
• total height 107 mm
