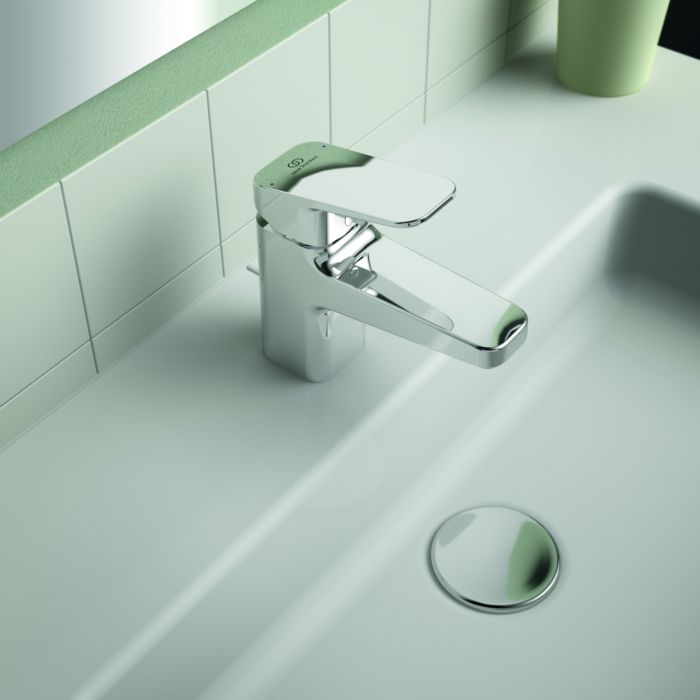

Ideal Standard CeraPlan basin mixer BD204AA projection 99mm, chrome-plated, with metal waste set

Ideal Standard CeraPlan wash basin mixer BD204AA

• DN15
• rigid cast spout and aerator with metal ring
• short design and pressure-independent flow regulator 5 l/min.
• Spout height 59 mm
• Metal drain fitting
• flexible connection hoses G 3/8
• Metal operating lever with red/blue marking
• Ø 38 mm FirmaFlow cartridge with ceramic sealing discs
• Swivel range 100 degrees
• tested for 500,000 cycles (one cycle consists of a total of 11 different lever movements)
• integrated fat reservoir (food-compliant)
• integrated hot water temperature limitation
• Fastening from below (EASY FIX) with centering seal
• Life test EN 817
• Noise behaviour DIN 4109
• Group 1
• total projection 168 x 132 mm
