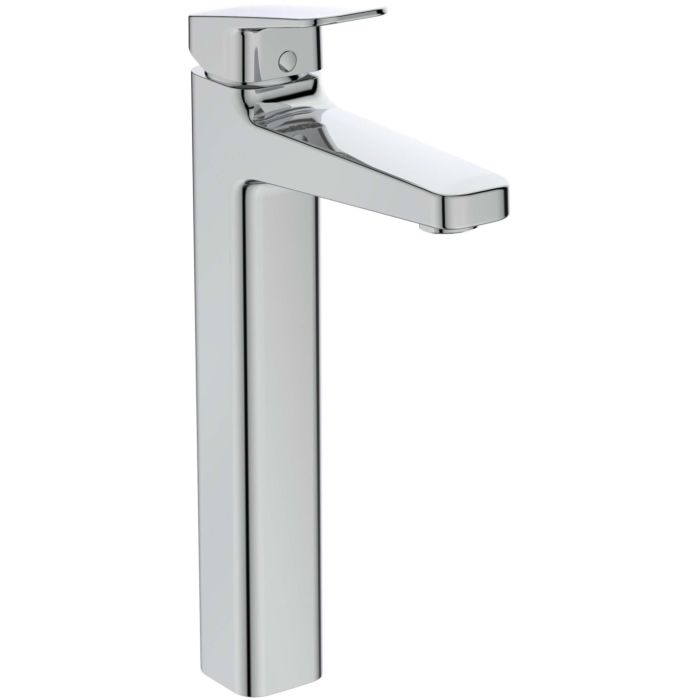

Ideal Standard CeraPlan basin mixer BD238AA projection 138mm, with extended base, chrome-plated, with metal waste set

Ideal Standard CeraPlan wash basin mixer BD238AA

• DN15
• rigid cast spout and aerator with metal ring
• short design and pressure independent flow regulator 5l/min.
• Outlet height 247 mm
• Metal drain fitting
• flexible connection hoses G 3/8
• Metal operating lever with red/blue marking
• Ø 38 mm FirmaFlow cartridge with ceramic sealing discs
• Swivel range 100 degrees
• tested for 500,000 cycles (one cycle consists of a total of 11 different lever movements)
• integrated fat reservoir (food-compliant)
• Integrated hot water temperature limitation
• Fastening from below (EASY FIX) with centering seal
• Life test EN 817
• Noise behaviour DIN 4109
• Group 1
• total projection 210 x 321 mm
