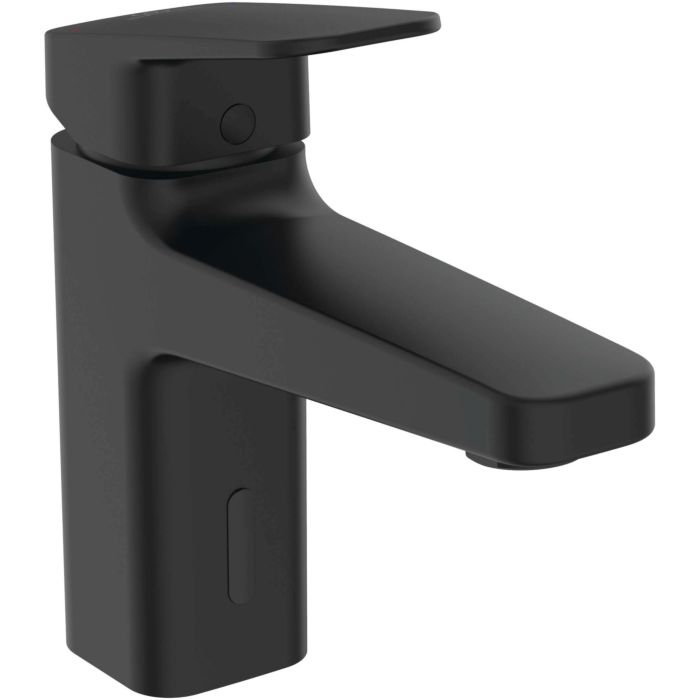

Ideal Standard CeraPlan wash basin mixer BD283XG without waste set, 6V, with push-open valve, silk black
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 100
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Ideal Standard CeraPlan wash basin mixer BD283XG
- DN15
- Function 1 Sensor fitting Opens only cold water
- thermal disinfection and stagnation flushing can be carried out
- Setting the sensor functions with gestures
- Battery operation (6V)
- Opening the valve using the handle lever interrupts an active sensor function
- Function 2 single lever mixer rigid cast spout and aerator with metal ring
- short design
- with pressure independent flow regulator 5l/min
- Projection 124 mm
- Outlet height 88 mm
- flexible connection hoses G3/8
- Metal operating lever with red/blue marking
- Ø 38 mm FirmaFlow cartridge with ceramic sealing discs
- Stainless steel cartridge transmission
- Swivel range 100 degrees
- tested for 500,000 cycles (one cycle consists of a total of 11 different lever movements)
- Maximum temperature resistance up to 95 °C (not suitable for continuous operation)
- integrated fat reservoir (food compatible)
- integrated hot water temperature limitation
- Fastening from below (EASY-Fix) with centering seal
- Life test EN 817
- Noise behaviour DIN 4109
- Group 1
Downloads (4)
Product Safety
Manufacturer
Ideal Standard GmbH
E-Mail
idealstandard.de@idealstandard.com
Address
Euskirchener Straße 80
53121 Bonn
Germany
** Average Wholesale Price
