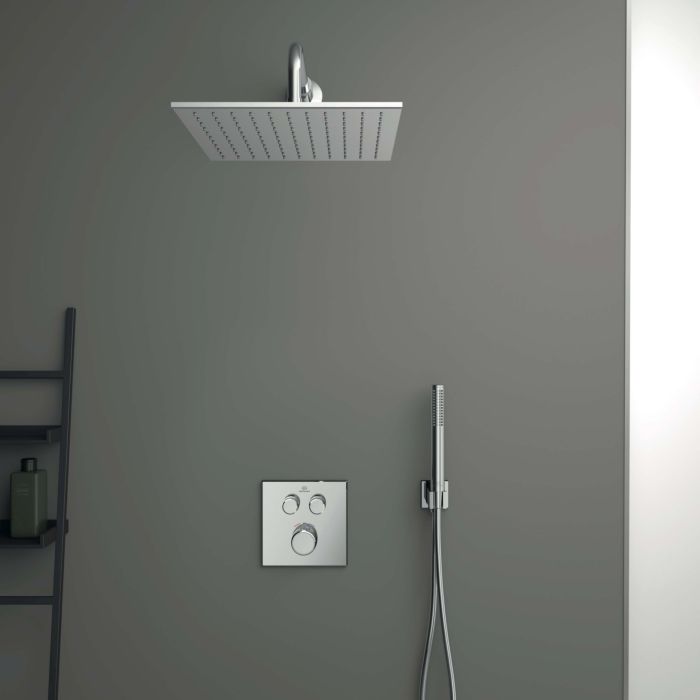

Ideal Standard CeraTherm Navigo fitting package A7773AA concealed shower thermostat, chrome

Ideal Standard CeraTherm Navigo fittings package A7773AA

• Fittings package consisting of A7302.. - Shower thermostat concealed kit 2 for final assembly
• two sampling points
• Backflow preventer
• Flush-mounted kit 1 Easy-Box required for installation (A1000NU - sold separately)
• Metal handles
• Open/close at the touch of a button
• Volume control by turning (Navigo)
• simultaneous operation of both channels possible
• Rosette 157x157 mm
• Thermostat cartridge with wax expansion element
• Hot water temperature limiter
• Temperature lock 40 °C
• DICHT-FIX system separate sealing of each opening for optimal protection of the structure against moisture and water
• Noise behaviour group 1
• For use as a bath fitting, a separate pipe separator is required
• Weight 2
• 101kg
• A1000.. - Flush-mounted kit 1 Easy-Box for flush-mounted single-lever mixers and thermostats (with Navigo) Kit 2
• Wall installation
• Pre-assembly in the shell
• with cleaning template and flushing block
• Connections G1/2
• DZR dezincification resistant
• Installation depth 73-95 mm
• Height adjuster 5-40 mm
• Noise behaviour group 1
• Weight 0
• 986kg
• BC771.. - Wall connection elbow flush-mounted
• with shower holder
• Backflow preventer
• DVGW-intrinsically safe
• Shower hose connection G1/2
• Wall connection G1/2
• Weight 0
• 330kg
• BE175.. - Shower hose
• Idealflex
• Connection G1/2
• Weight 0
• 353kg
• BC774.. - Hand shower
• 1-Function
• EasyClean
• Connection G1/2
• Weight 0
• 176kg
• A5805.. - Rain shower
• 300x300mm
• Ball joint
• EasyClean
• Connection G1/2
• Weight 2
• 500kg
• B9445.. - Wall connection
• Connection G1/2
