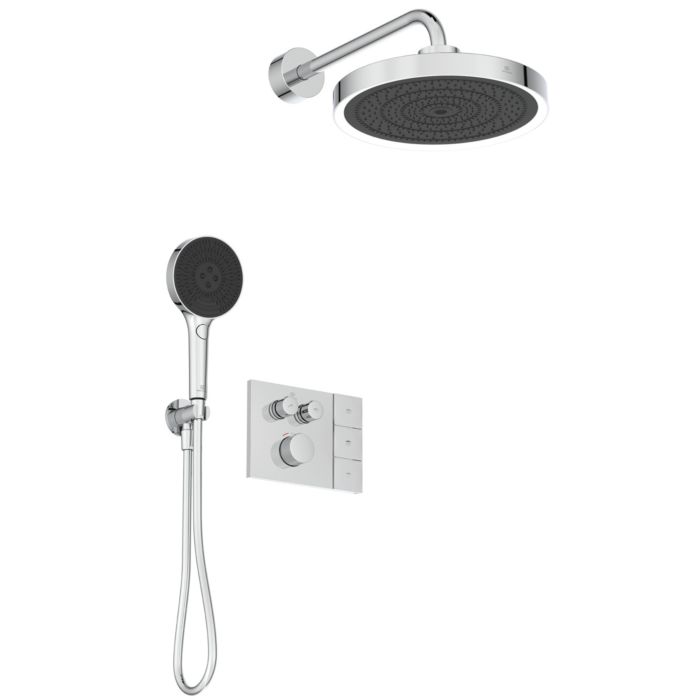

Ideal Standard CeraTherm Navigo Solos fitting package A7893AA concealed shower fitting, chrome-plated

Ideal Standard CeraTherm Navigo Solos fittings package A7893AA

• consisting of A7894.. - Shower thermostat flush-mounted kit 2 for final assembly
• with optionally mountable frame for Solo's rain shower remote control
• two sampling points
• Backflow preventer
• Flush-mounted kit 1 Easy-Box required for installation (A1000NU - sold separately)
• Metal handle
• Rosette 213x157 mm
• Thermostat cartridge with wax expansion element
• Hot water temperature limiter
• Temperature lock 40 °C
• Hot water temperature setting with scalding protection
• DICHT-FIX system separate sealing of each opening for optimal protection of the structure against moisture and water
• Noise behaviour DIN4109 Group 1
• Service life DIN EN 200
• EN 1111
• A1000.. - Flush-mounted kit 1 Easy-Box for flush-mounted single-lever mixers and thermostats (with Navigo) Kit 2
• Wall installation
• Pre-assembly in the shell
• with cleaning template and flushing block
• Connections G1/2
• DZR dezincification resistant
• Installation depth 73-95 mm
• Height adjuster 5-40 mm
• Noise behaviour DIN 4109 Group 1
• Weight 0
• 986kg
• A7890.. - Rain shower
• 3-Function
• Rain spray types
• gentle rain and massage
• Ø 330 mm
• Ball joint
• EasyClean
• Connection G1/2
• with wall connection
• with LED light ring
• white
• sensor-controlled
• Color change possible only via Zigbee
• Mains operation (230 V)
• Jet type change via remote control (included in delivery)
• Battery operation (6 V)
• Weight 3
• 970kg
• A7896.. - Solos hand shower
• 3-Function
• Rain spray types
• Massage and gentle rain
• Ø130mm
• Navigo push button switching
• EasyClean
• Connection G1/2
• Weight 0
• 700kg
• BC807.. - Wall connection elbow flush-mounted
• with shower holder
• Backflow preventer
• DVGW-intrinsically safe
• Shower hose connection G1/2
• Wall connection G1/2
• Weight 0
• 187kg
• BE175.. - Shower hose
• Idealflex
• Connection G1/2
