Ideal Standard Connect Air wash basin mixer A7022A5 5 l/min, projection 112mm, ND, magnetic grey
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 100
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

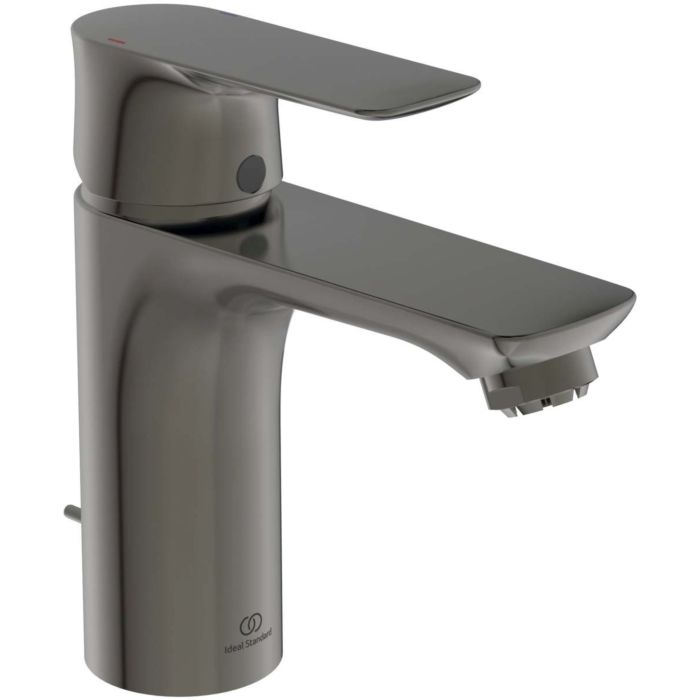

Ideal Standard Connect Air wash basin mixer A7022A5
- DN15
- rigid cast spout
- Base dimensions 48 mm
- Aerator with metal ring and pressure-independent flow regulator 5 l/min.
- Outlet height 100 mm
- flexible connection hoses G 3/8
- Metal operating lever
- with red/blue marking on the lever
- Fastening from below (EASY-FIX) with centering seal
- Ø38 mm CLICK cartridge with ceramic sealing discs
- Stainless steel cartridge transmission
- Cartridge swivel range 100 degrees
- tested for 500,000 cycles (1 cycle consists of a total of 11 different lever movements)
- Maximum temperature resistance up to 95 °C (not suitable for continuous operation)
- integrated fat reservoir (food compatible)
- integrated hot water temperature limiter
- Life test EN 817
- Noise behaviour DIN 4109
- Group 1
Downloads (2)
