Judo automatic backwash protection filter 8310072 30 µm special mesh size, 1 1/2", automatic backwash
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 400
Part Number: 8310072
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

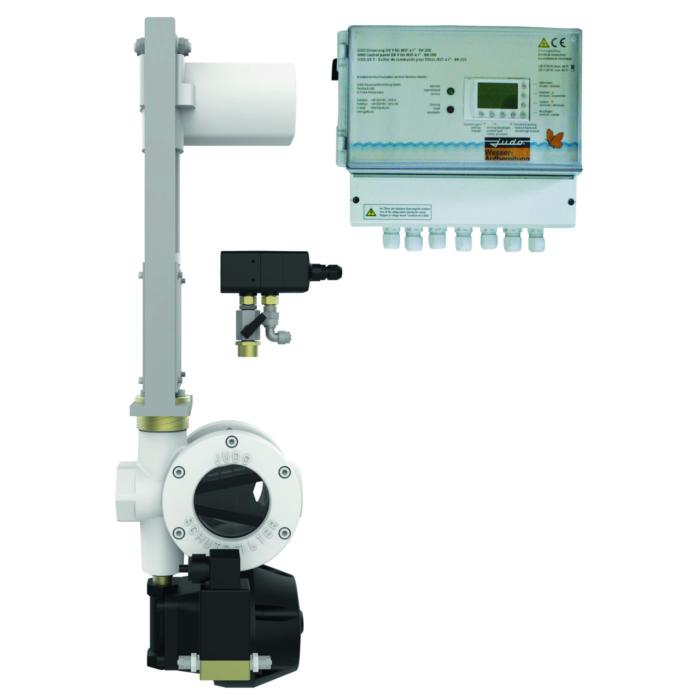

Judo automatic backwash protection filter 8310072
- Housing made of grey cast iron PN 10
- Threaded connection according to DIN EN 10226-1
- inside and outside corrosion-resistant plastic coated
- Sight glasses on both sides
- 2 filter chambers, each with a permanent filter insert (filter/support fabric made of stainless steel)
- Multi-way valve with linear actuator for automatic control of operating and backwash settings
- Differential pressure switch
- Diaphragm flush valve with attached pilot solenoid valve (control medium water or compressed air 4-7 bar)
- PLC control with potential-free fault and backwash message
- Power supply 230 V/50 Hz
- Automatic differential pressure controlled backwash (via adjustable differential pressure switch) with time priority switching via weekly timers or interval as well as manually triggered backwash
- for drinking water up to 30 °C
- Operating pressure 1
- 5-10bars
