Judo Fimat backwash protection filter 8010087 1 1/2", 500 µm special mesh size
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 400
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

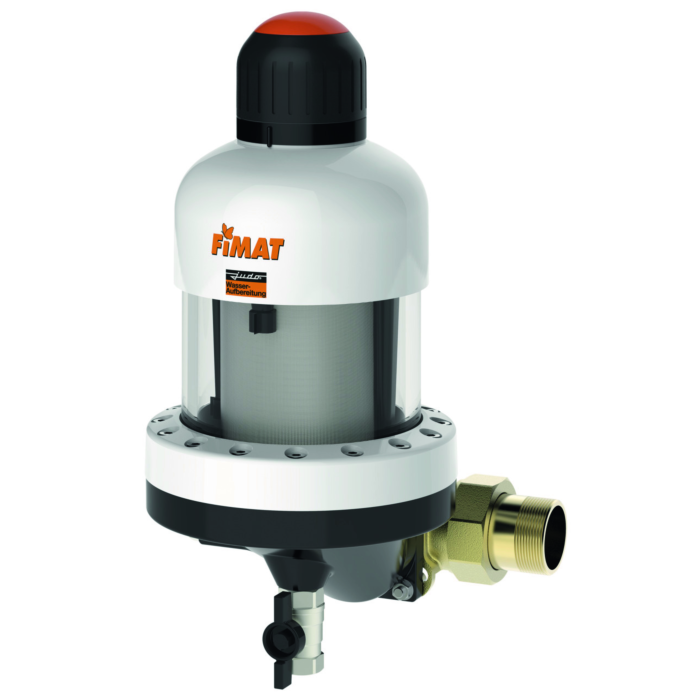

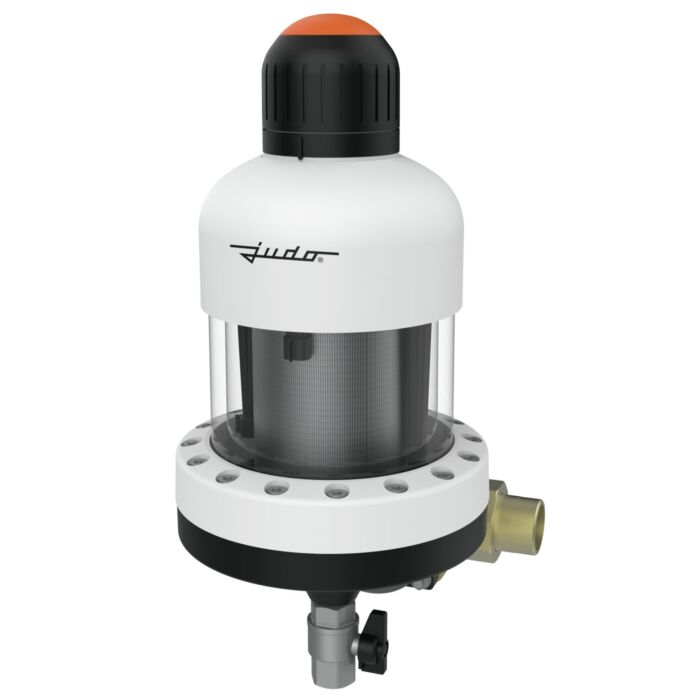

Judo Fimat backwash protection filter 8010087
- for the filtration of fine-grained and solid impurities in drinking and service water systems with increased solids content (for drinking water with a clean filter at 0
- 2 bar pressure loss
- For domestic water and heavily polluted water, a lower flow rate is to be expected
- Expert advice required)
- Filter housing PN 10
- inside and outside corrosion-resistant plastic coated
- Built-in rotary flange with screw connection
- Horizontal or vertical installation possible by turning the QUICKSET-E installation rotary flange
- Stainless steel filter mesh
- Handwheel for backwashing according to the point rotation system with simultaneous cleaning of the sight glass
- for drinking water up to 30 °C
- Operating pressure 1
- 5-10bars
Downloads (4)
Product Safety
Manufacturer
JUDO Wasseraufbereitung GmbH
E-Mail
info@judo.eu
Address
Hohreuschstraße 39-41
71364 Winnenden
Germany
