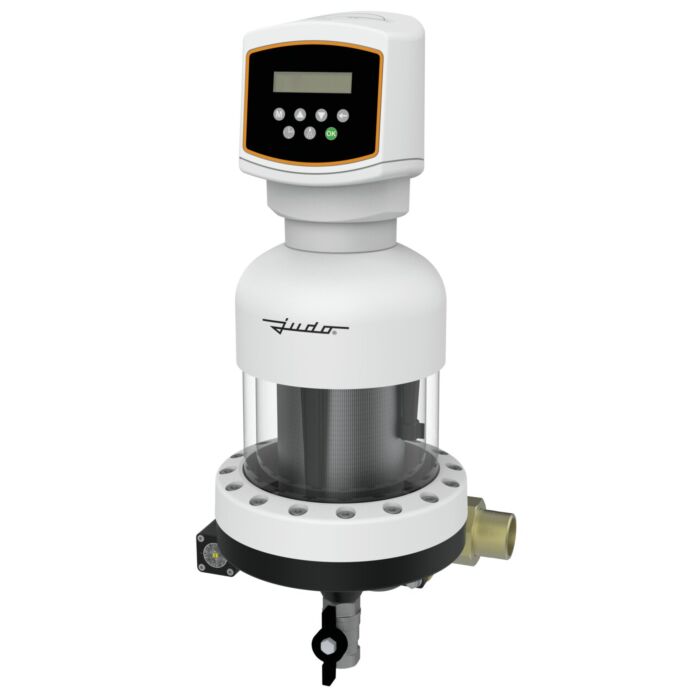

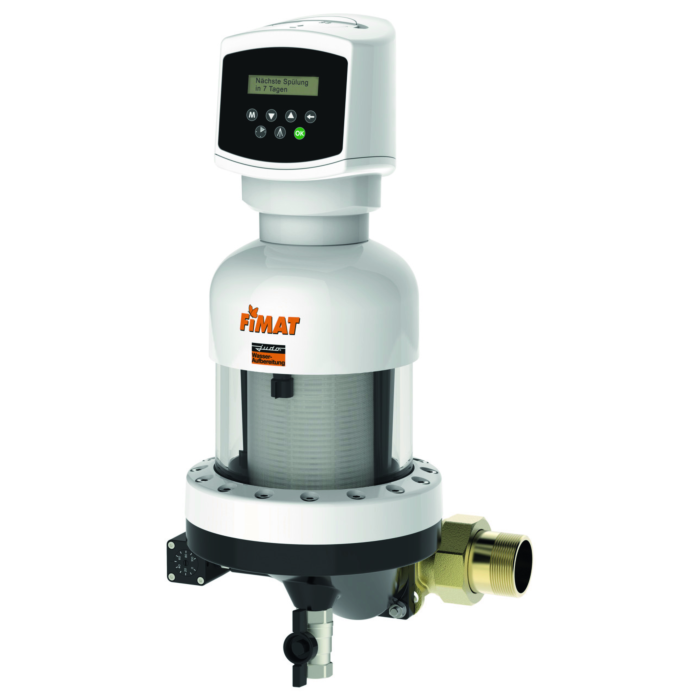

Judo Fimat backwash protection filter 8020532
- for filtration of fine-grained
- solid impurities in drinking and service water systems with increased solids content (for drinking water with a clean filter at 0
- 2 bar pressure loss
- For domestic water and heavily polluted water, a lower flow rate is to be expected
- Expert advice required)
- Filter housing PN 10
- inside and outside corrosion-resistant plastic coated
- Built-in rotary flange with bayonet connection made of brass with screw connections (threaded connection according to DIN EN 10226-1)
- Horizontal or vertical installation possible by turning the QUICKSET-E installation rotary flange
- Stainless steel filter mesh
- Backwashing of the sieve insert according to the point rotation system while simultaneously cleaning the sight glass
- with automatic backwash to trigger the operating and backwash positions
- Plug-in power supply 230 V/50 Hz
- Patented safety module for closing the flush valve in the event of a power failure
- Control via keyboard and LCD display
- Time-controlled automatic backwash (adjustable from 4 hours to 50 days)
- with differential pressure switch (adjustable differential pressure up to 1 bar) to trigger the backwash
- Hand release via button
- Potential-free input for remote triggering of a backwash and potential-free outputs for transmission of messages
