Judo hot water backwash protection filter 8052507 320 µm mesh size, DN 100, automatic backwash
€14,465.64
instead of
€18,479.86
**
-22%
You're saving
€4,014.22
Incl. 19% VAT ,
plus shipping costs
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 400
Part Number: 8052507
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

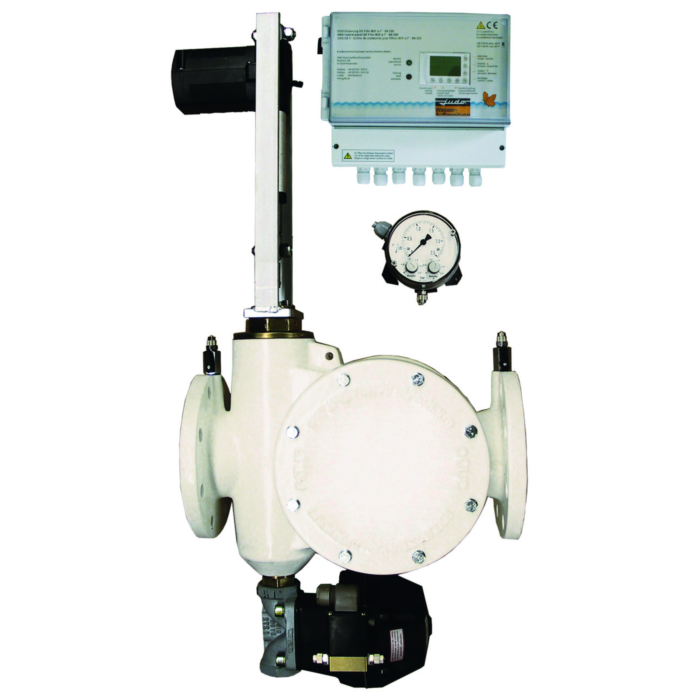

Judo hot water backwash protection filter 8052507
- Hot water resistant housing made of grey cast iron PN 10 with 2 connections 1/4" IG for differential pressure gauge
- Flange connection according to DIN EN 1092-2
- inside and outside corrosion-resistant plastic coated
- 2 filter chambers, each with a permanent filter insert (filter/support fabric made of stainless steel)
- Multi-way valve with linear actuator for automatic control of the operating and backwash positions
- Differential pressure gauge with switching contacts
- Diaphragm flush valve with attached pilot solenoid valve (control medium compressed air 5
- 5-7 bars)
- PLC control with potential-free fault and backwash message
- Power supply 230 V/50 Hz
- Automatic differential pressure controlled backwash (via adjustable switching contact of the differential pressure gauge) with time priority switching via weekly timers or interval as well as manually triggered backwash
- for drinking water up to 85 °C
- Operating pressure 1
- 5-10bars
