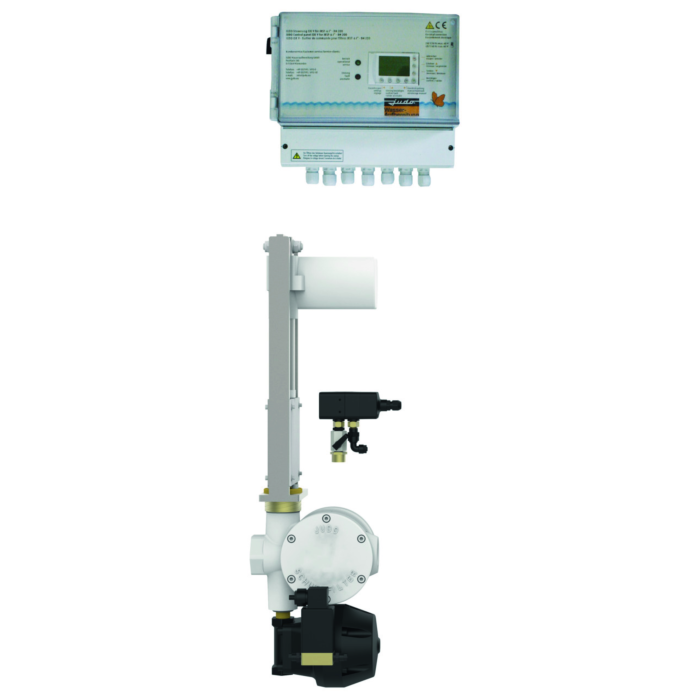

Judo hot water backwash protection filter 8052516
  • Hot water resistant housing made of grey cast iron PN 10
  • Threaded connection according to DIN EN 10226-1
  • inside and outside corrosion-resistant plastic coated
  • 2 filter chambers, each with a permanent filter insert (filter/support fabric made of stainless steel)
  • Multi-way valve with linear actuator for automatic control of the operating and backwash positions
  • Differential pressure switch
  • Diaphragm flush valve with attached pilot solenoid valve (control medium water or compressed air 4-7 bar)
  • PLC control with potential-free fault and backwash message
  • Power supply 230 V/50 Hz
  • Automatic differential pressure controlled backwash (via adjustable differential pressure switch) with time priority switching via weekly timers or interval as well as manually triggered backwash
  • for drinking water up to 85 °C
  • Operating pressure 1
  • 5-10bars
