Judo Profimat backwash protection filter 8020055 JPF-QC-ATP, 320 µm special mesh size, DN 200, automatic backwash
€16,480.07
instead of
€20,785.49
**
-21%
You're saving
€4,305.42
Incl. 19% VAT ,
plus shipping costs
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 400
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

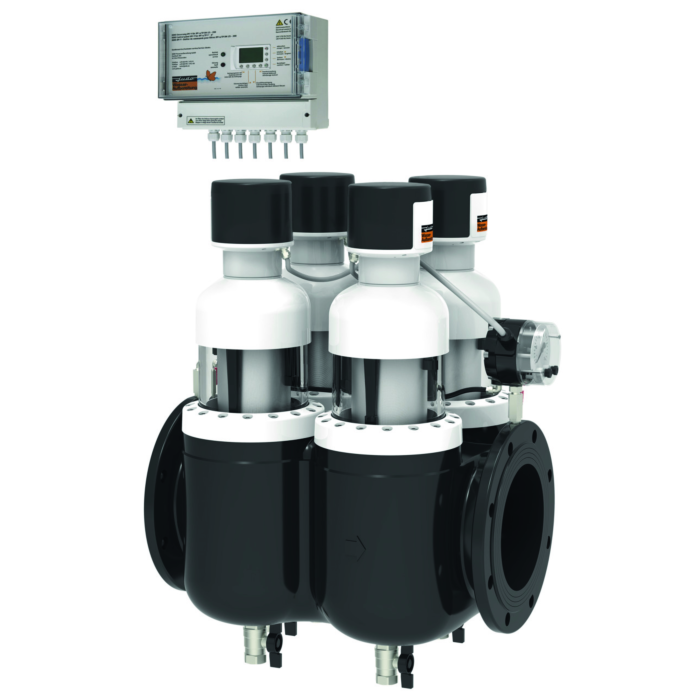

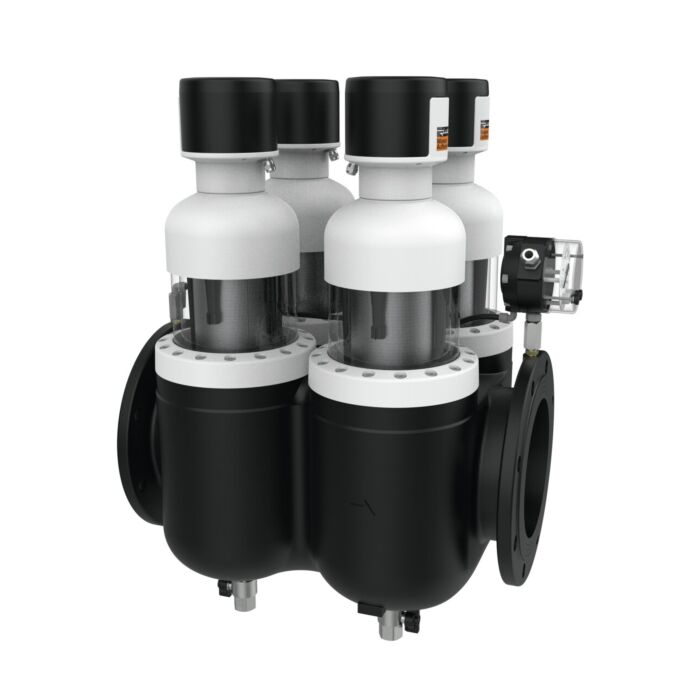

Judo Profimat backwash protection filter 8020055
- Filter housing made of grey cast iron PN 10
- inside and outside corrosion-resistant plastic coated
- Flange connection according to DIN EN 1092-2
- Stainless steel filter mesh
- Backwashing of the sieve insert according to the point rotation system while simultaneously cleaning the sight glass
- Differential pressure measurement with automatic backwash for setting the operating and backwash positions by servomotor
- separate control box
- Backwashing dependent on time and differential pressure through additional differential pressure gauge with adjustable differential pressure up to max. 2 bar
- with potential-free contact for remote transmission of the fault message
- with function and fault indication via LED and buzzer
- Power supply (230 V/50 Hz) via connection cable (approx. 3 m) with plug
- for drinking water up to 30 °C
- Operating pressure 1
- 5-10bars
