Judo Profimat backwash protection filter 8020621 JPF-QC-AT, 1", 320 µm mesh size, automatic backwash
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 400
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

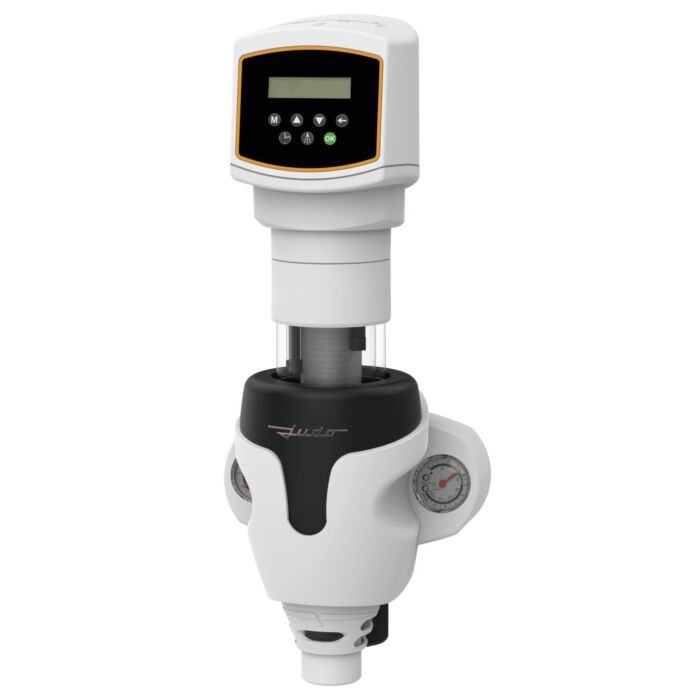

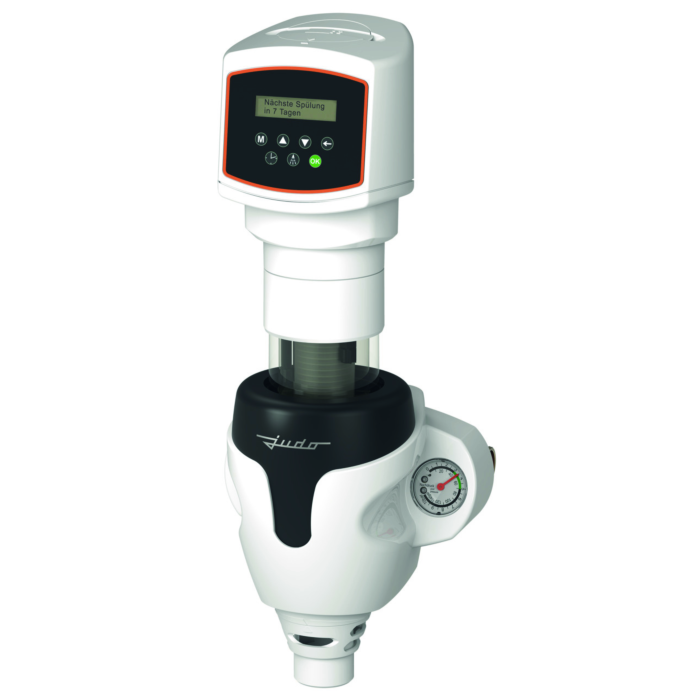

Judo Profimat backwash protection filter 8020621
- Filter housing made of plastic PN 16
- Built-in rotary flange with patented bayonet lock made of brass with screw connection (threaded connection DIN EN 10226-1 and patented single-screw connection technology
- Horizontal or vertical installation possible
- Stainless steel filter mesh
- Backwashing of the sieve insert according to the point rotation system while simultaneously cleaning the sight glass
- with integrated free outlet
- with automatic backwash to trigger the operating and backwash positions
- Plug-in power supply 230 V/50 Hz
- Patented safety module for closing the flush valve in the event of a power failure
- Control via keyboard and LCD display
- Time-controlled automatic backwash (adjustable from 4 hours to 50 days)
- Hand release via button
- Potential-free input for remote triggering of a backwash and potential-free outputs for transmission of messages (I/O cable set required)
- Pressure gauge and thermometer
- for drinking water up to 30 °C
- Operating pressure 1
- 5-16bars
