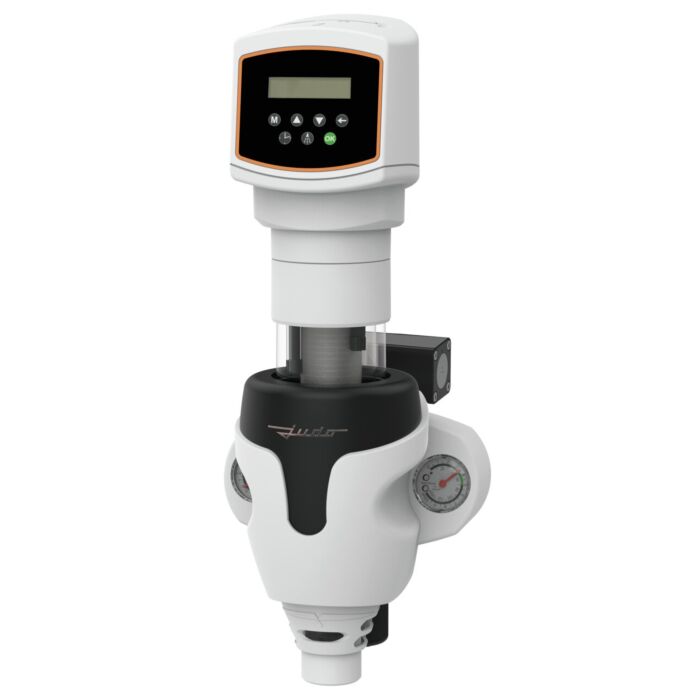

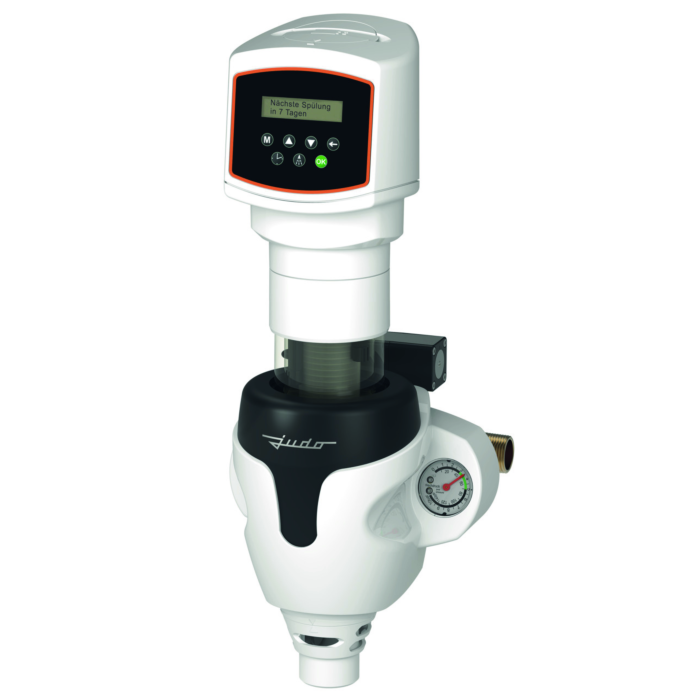

Judo Profimat backwash protection filter 8020636 JPF-QC-ATP, 1", 30 µm mesh size, automatic backwash
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 400
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Judo Profimat backwash protection filter 8020636
- Filter housing PN 16
- Built-in rotary flange with patented bayonet lock made of brass with screw connection (threaded connection according to DIN EN 10226-1) and patented one-screw connection technology
- Horizontal or vertical installation possible
- Stainless steel filter mesh
- Backwashing of the sieve insert using a point rotation system while simultaneously cleaning the sight glass
- with integrated free outlet
- with automatic backwash to trigger the operating and backwash positions
- Plug-in power supply 230 V/50 Hz
- Patented safety module for closing the flush valve in the event of a power failure
- Control via keyboard and LCD display
- Time-controlled automatic backwash (adjustable from 4 hours to 50 days)
- with differential pressure switch (adjustable differential pressure up to 0
- 6 bar) to trigger the backwash
- Hand release via button
- Potential-free input for remote triggering of a backwash and potential-free outputs for transmission of messages (I/O cable set required)
- Pressure gauge and thermometer
- for drinking water up to 30 °C
- max. operating pressure 1
- 5-16bars
Downloads (4)
Product Safety
Manufacturer
JUDO Wasseraufbereitung GmbH
E-Mail
info@judo.eu
Address
Hohreuschstraße 39-41
71364 Winnenden
Germany
** Average Wholesale Price
