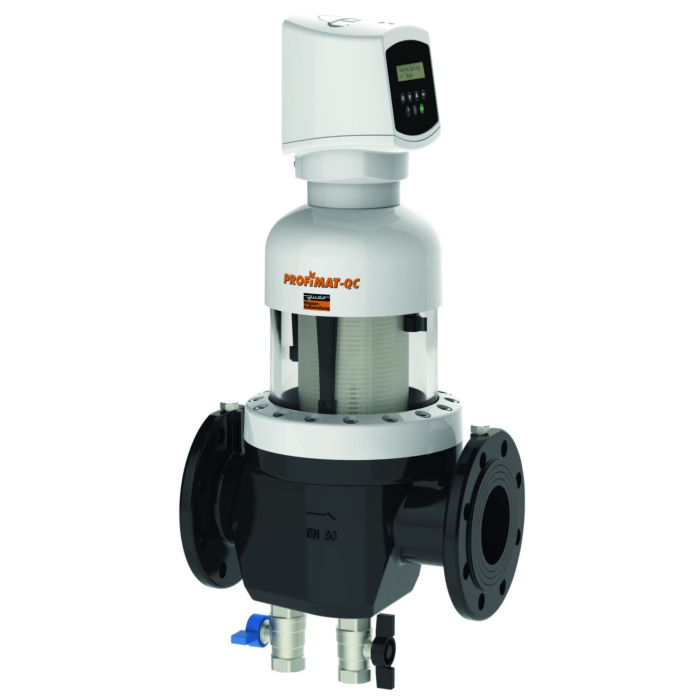

Judo Profimat backwash protection filter 8025058 JPF-QC-AT, 320 µm special mesh size, DN 100, automatic backwash
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 400
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Judo Profimat backwash protection filter 8025058
- Filter housing made of grey cast iron PN 10
- inside and outside corrosion-resistant plastic coated
- Flange connection according to DIN EN 1092-2
- Stainless steel filter mesh
- Backwashing according to the point rotation system with simultaneous cleaning of the sight glass
- with 2 pressure gauge connections 1/4"
- with automatic backwash to trigger the operating and backwash positions
- Plug-in power supply 230 V/50 Hz
- Patented safety module for closing the flush valve in the event of a power failure
- Control via keyboard and LC display
- Time-controlled automatic backwash (adjustable from 4 hours to 50 days)
- Hand release via button
- Potential-free input for remote triggering of a backwash and potential-free outputs for transmission of messages (I/O cable set required)
- for drinking water 30 °C
- Operating pressure 1
- 5-10bars
Downloads (4)
Product Safety
Manufacturer
JUDO Wasseraufbereitung GmbH
E-Mail
info@judo.eu
Address
Hohreuschstraße 39-41
71364 Winnenden
Germany
