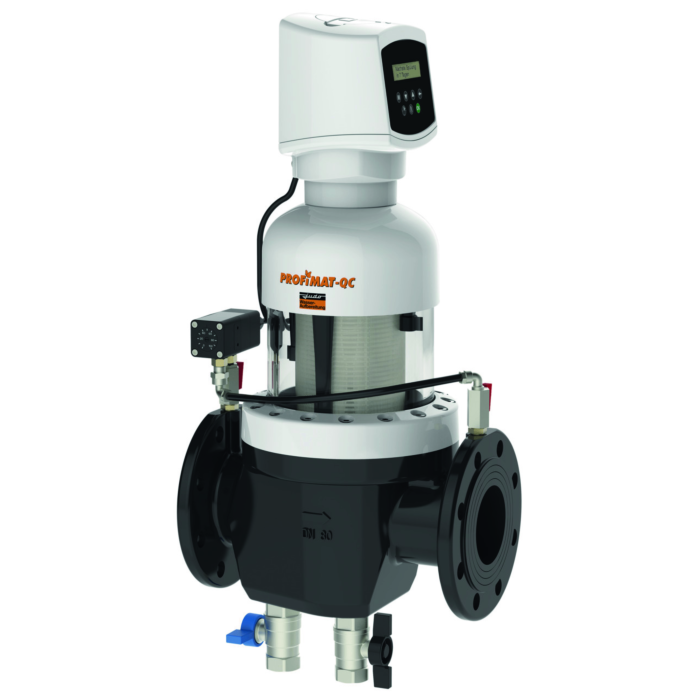

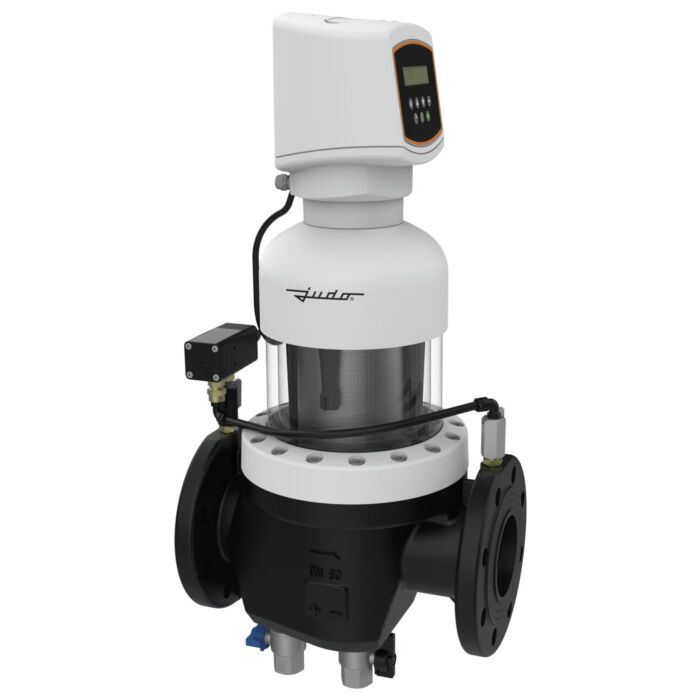

Judo Profimat backwash protection filter 8025067
  • Filter housing made of grey cast iron PN 10
  • inside and outside corrosion-resistant plastic coated
  • Flange connection according to DIN EN 1092-2
  • Stainless steel filter mesh
  • Backwashing according to the point rotation system with simultaneous cleaning of the sight glass
  • with automatic backwash to trigger the operating and backwash positions
  • Plug-in power supply 230 V/50 Hz
  • Patented safety module for closing the flush valve in the event of a power failure
  • Control via keyboard and LCD display
  • Time-controlled automatic backwash (adjustable from 4 hours to 50 days)
  • with differential pressure switch (adjustable differential pressure up to 0
  • 6 bar) to trigger the backwash and manual release via button
  • Potential-free input for remote triggering of a backwash and potential-free outputs for transmission of messages (I/O cable set required)
  • for drinking water up to 30 °C
  • Operating pressure 1
  • 5-10bars

Technical Data Chevron Down

product class backwash filter
Article compression stage PN 10
Flange pressure rating PN 10
series PROFIMAT
Housing material cast iron
connection flange
Mesh size filter element 30 µm
Material quality of the housing Cast iron GG 25 (GJL-250)
Material filter element Stainless steel 316 Ti (1.4571)
Max. medium temperature (continuous operation) 30℃
nominal diameter DN100
