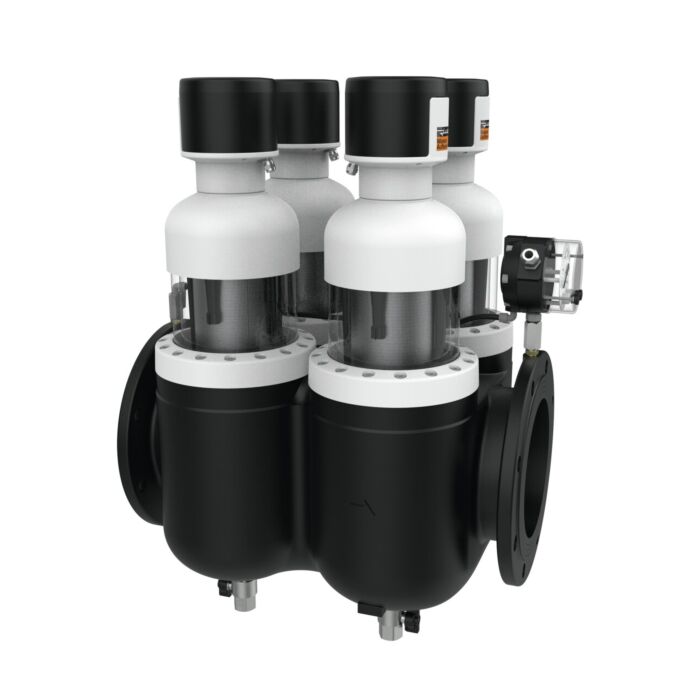

Judo Profimat backwash protection filter 8320012
  • Filter housing made of grey cast iron PN 10
  • inside and outside corrosion-resistant plastic coated
  • Flange connection according to DIN EN 1092-2
  • Stainless steel filter mesh
  • Backwashing of the sieve insert according to the point rotation system while simultaneously cleaning the sight glass
  • Differential pressure measurement with automatic backwash for setting the operating and backwash positions by servomotor

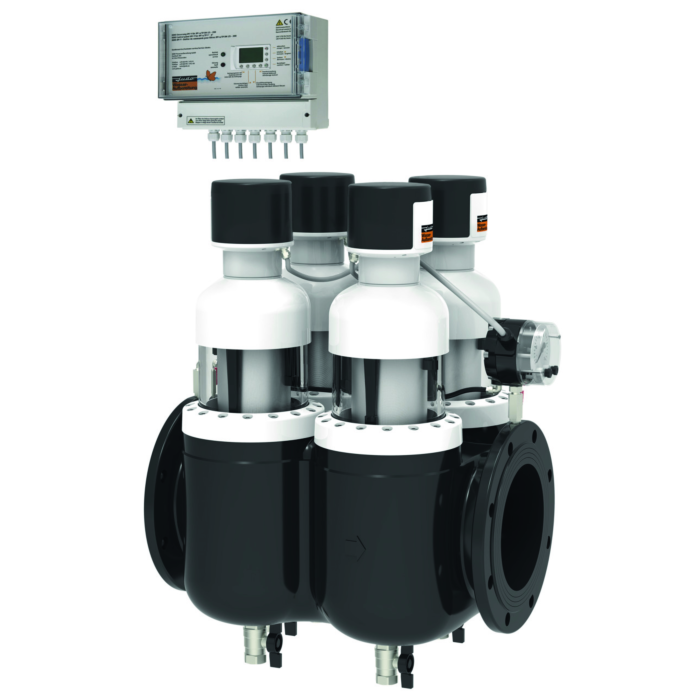

  • separate control box
  • Backwashing dependent on time and differential pressure through additional differential pressure gauge with adjustable differential pressure up to max. 2 bar
  • with potential-free contact for remote transmission of the fault message
  • with function and fault indication via LED and buzzer
  • Power supply (230 V/50 Hz) via connection cable (approx. 3 m) with plug
  • for drinking water up to 30 °C
  • Operating pressure 1
  • 5-10bars
