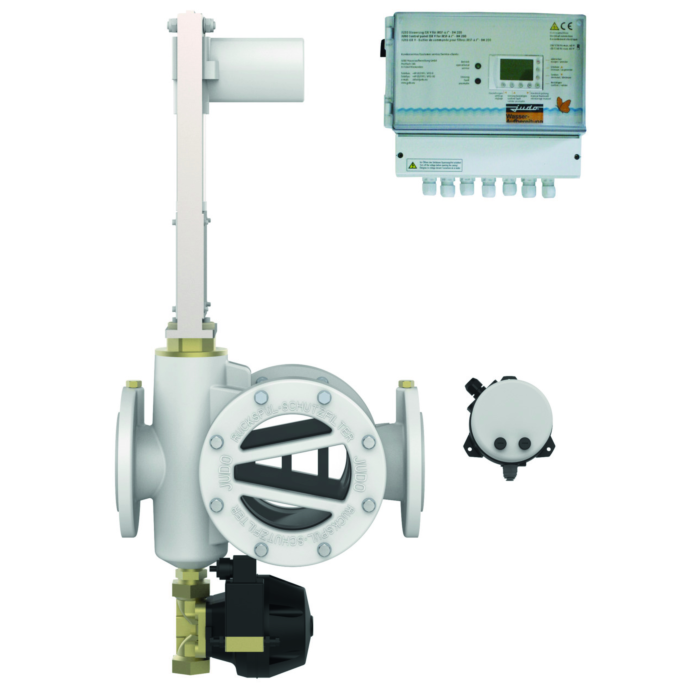

Judo backwash protection filter 8310152
  • Housing made of grey cast iron PN 10 with 2 connections 1/4" IG for differential pressure gauge
  • Flange connection according to DIN EN 1092-2
  • inside and outside corrosion-resistant plastic coated
  • Sight glasses on both sides
  • 2 filter chambers, each with a permanent filter insert (filter/support fabric made of stainless steel)
  • Multi-way valve with linear actuator for automatic control of the operating and backwash positions
  • Differential pressure gauge with switching contacts
  • Diaphragm flush valve with attached pilot solenoid valve (control medium compressed air 5
  • 5-7 bars)
  • PLC control with potential-free fault and backwash message
  • Power supply 230 V/50 Hz
  • Automatic differential pressure controlled backwash (via adjustable switching contact of the differential pressure gauge) with time priority switching via weekly timers or interval as well as manually triggered backwash
  • for drinking water up to 30 C
  • Operating pressure 1
  • 5-10bars
