Judo backwash protection filter 8310158 1000 µm special mesh size, DN 80, automatic backwash
€12,409.32
instead of
€15,403.07
**
-19%
You're saving
€2,993.75
Incl. 19% VAT ,
plus shipping costs
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 400
Part Number: 8310158
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

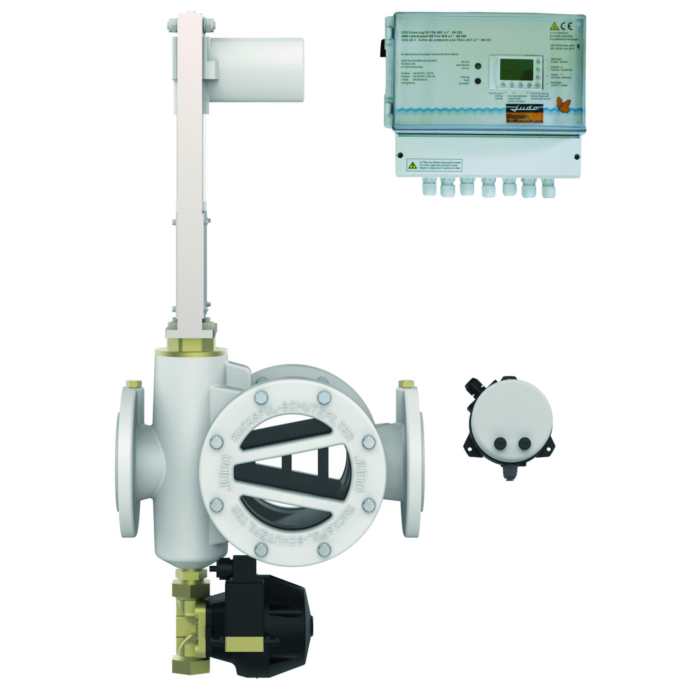

Judo backwash protection filter 8310158
- Housing made of grey cast iron PN 10 with 2 connections 1/4" IG for differential pressure gauge
- Flange connection according to DIN EN 1092-2
- inside and outside corrosion-resistant plastic coated
- Sight glasses on both sides
- 2 filter chambers, each with a permanent filter insert (filter/support fabric made of stainless steel)
- Multi-way valve with linear actuator for automatic control of the operating and backwash positions
- Differential pressure gauge with switching contacts
- Diaphragm flush valve with attached pilot solenoid valve (control medium compressed air 5
- 5-7 bars)
- PLC control with potential-free fault and backwash message
- Power supply 230 V/50 Hz
- Automatic differential pressure controlled backwash (via adjustable switching contact of the differential pressure gauge) with time priority switching via weekly timers or interval as well as manually triggered backwash
- for drinking water up to 30 C
- Operating pressure 1
- 5-10bars
