Judo backwash protection filter 8310267 500 µm special mesh size, DN 150, automatic backwash
€23,370.65
instead of
€29,593.09
**
-21%
You're saving
€6,222.44
Incl. 19% VAT ,
plus shipping costs
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 400
Part Number: 8310267
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

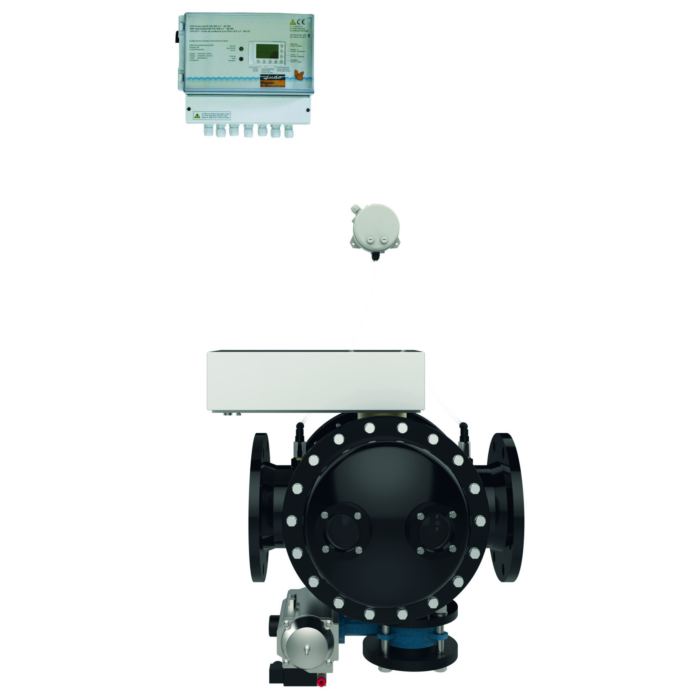

Judo backwash protection filter 8310267
- Welded steel housing PN 10 with 2 connections 1/2" IG for differential pressure gauge
- Flange connection according to DIN EN 1092-1
- inside and outside corrosion-resistant plastic coated
- Sight glasses on both sides
- 2 filter chambers, each with a permanent filter insert (filter/support fabric made of stainless steel)
- Diverter flap with linear drive for automatic control of the operating and backwash positions
- Differential pressure gauge with switching contacts
- Butterfly valve with pneumatic actuator and attached pilot solenoid valve (control medium compressed air 6-8 bar)
- PLC control with potential-free fault and backwash message
- Power supply 230 V/50 Hz
- Automatic differential pressure controlled backwash (via adjustable switching contact of the differential pressure gauge) with time priority switching via weekly timers or interval as well as manually triggered backwash
- for drinking water up to 75 °C
- Operating pressure 1
- 5-10bars
