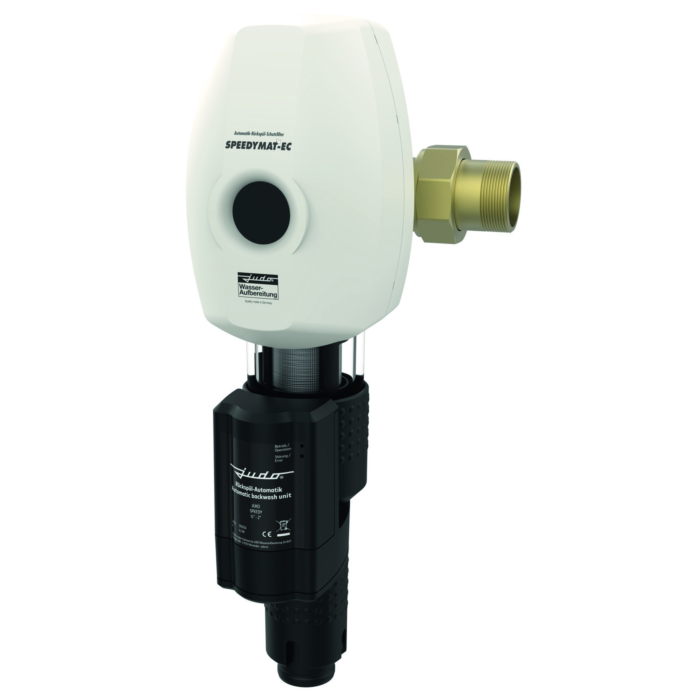

Judo Speedymat-ec-at backwash protection filter 8070678 JSY-EC-AT, 1 1/2", 100 µm mesh size, automatic backwash

Judo Speedymat-ec-at backwash protection filter 8070678

• Filter housing made of plastic PN 16
• Built-in rotary flange with bayonet connection made of brass with screw connections (threaded connection according to DIN EN 1022-1)
• Horizontal or vertical installation possible by turning the QUICKSET-E installation rotary flange
• Stainless steel filter mesh
• cleaning unit
• Backwashing of the sieve insert while cleaning the sight glass
• with integrated free spout and patented ceramic flush valve
• with hose connection
• with time-controlled automatic backwash
• The screen surface is cleaned three times per backwash
• Preselectable setting of the backwash interval (1 day, 1 week, 1 month, 2 months)
• with potential-free contact for remote transmission of the fault message
• with patented safety module
• Before triggering the backwash start, it checks whether the buffer battery has enough power reserve to complete the backwash process in the event of a power failure (only then will the backwashing take place)
• Plug-in power supply 230 V/50 Hz
• for drinking water up to 30 °C
• Operating pressure 1.5-16 bar
