Judo Speedymat-ec-at backwash protection filter 8070679 JSY-EC-AT, 2", automatic backwash, time-controlled
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 400
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

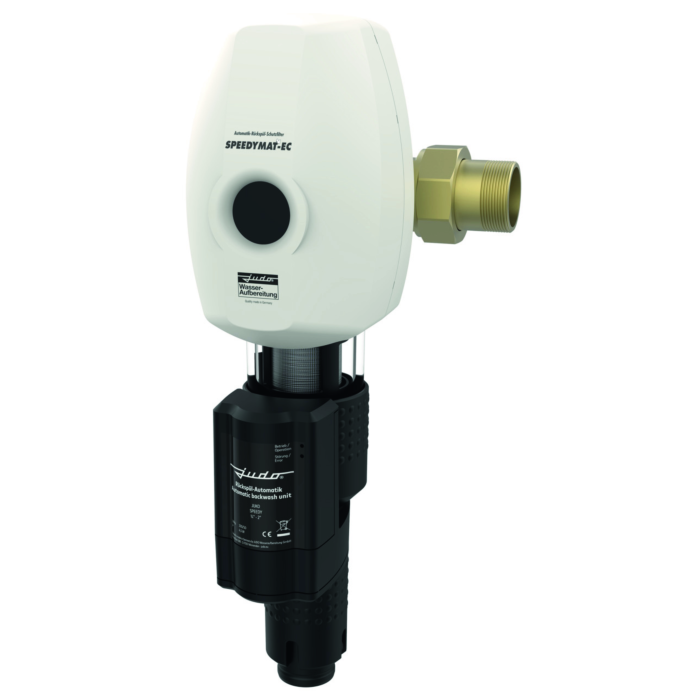

Judo Speedymat-ec-at backwash protection filter 8070679
- Filter housing made of plastic PN 16
- Built-in rotary flange with bayonet connection made of brass with screw connections (threaded connection according to DIN EN 1022-1)
- Horizontal or vertical installation possible by turning the QUICKSET-E installation rotary flange
- Stainless steel filter mesh
- Cleaning unit
- Backwashing the sieve insert while simultaneously cleaning the sight glass
- with integrated free spout and patented ceramic flush valve
- with hose connection
- with time-controlled automatic backwash
- The screen surface is cleaned three times per backwash
- Preselectable setting of the backwash interval (1 day)
- 1 week
- 1 month
- 2 months)
- with potential-free contact for remote transmission of the fault message
- with patented safety module
- Before triggering the backwash start, it checks whether the buffer battery has sufficient power reserve to complete the backwash process in the event of a power failure (only then will the backwash take place)
- Plug-in power supply 230 V/50 Hz
- for drinking water up to 30 °C
- Operating pressure 1
- 5-16bars
Downloads (4)
