Judo centrifugal separator 8360450 JZA 50, water flow/functional range 14-24 m³/h
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 400
Part Number: 8360450
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

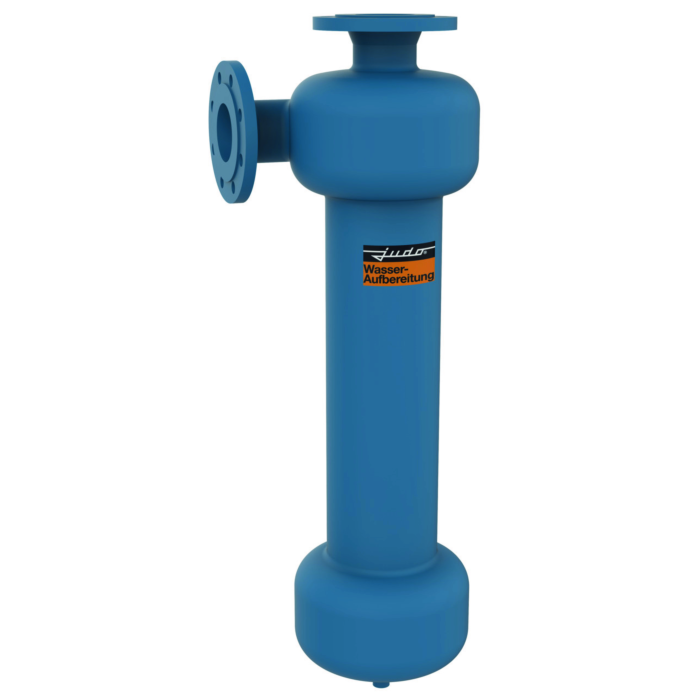

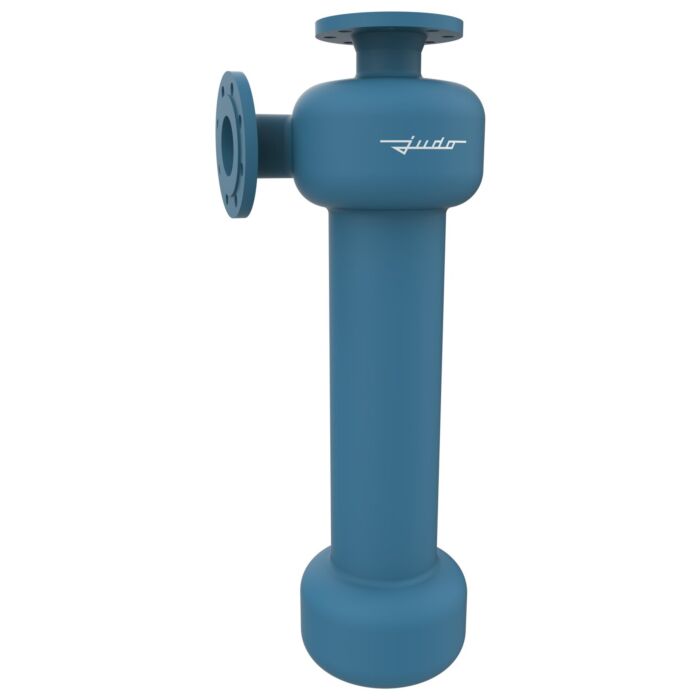

Judo centrifugal separator 8360450
- Use in water contaminated with solids to separate solid particles via the density difference between the substances to be separated and the water to be cleaned
- as pretreatment before backwash protection filters to extend the service life and backwash intervals
- for drinking and service water up to 30 °C
- Operating pressure max. 10 bar
- compact and closed functional unit with side inlet and top outlet opening
- made of steel St. 37
- painted
- PN10
- Requirement for function: continuous flow at 70-100% of the max. flow rate
- requires control air or control water of 5
- 5-7 bar when using the automatic drain unit
