Details

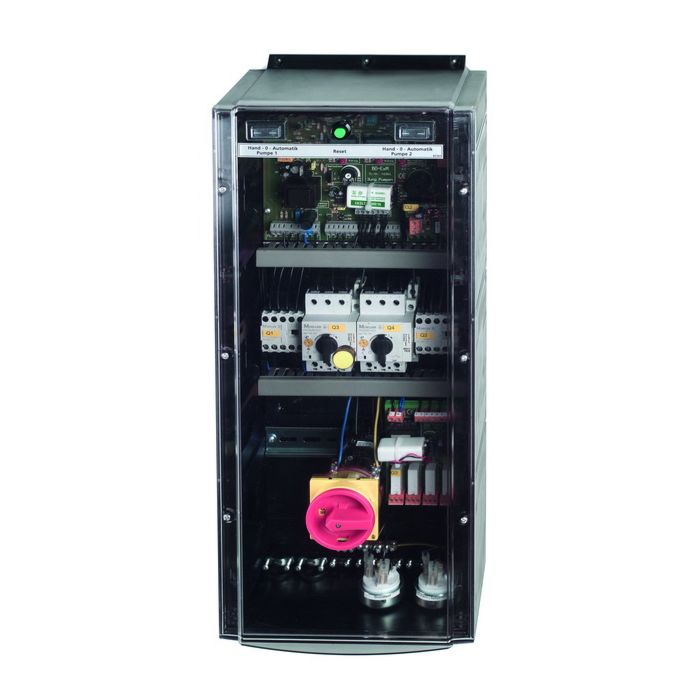

Jung Basiclogo control JP09755
- for level-dependent switching on and off of two direct-starting AC submersible pumps
- Automatically alternating switching on of pump 1 and pump 2
- Optional activation of the idle pump in case of peak load or fault as well as staggered start-up after power failure
- Operating voltage 1/N/PEx230 V
- 50Hz
- Housing with transparent door
- IP44
- 430x250x155mm
- 2x Motor contactors 4
- 0kW/400V
- 2 motor fuses 10 A Neozed
- 3x control fuses 2 A for 230V control circuits
- 1 AC output 2 A
- 230V
- 2 manual-0-automatic selector switches
- Indicator lights for operation of pump 1 and pump 2
- Flood alarm system (network dependent)
- Potential-free normally open contact for remote fault reporting
- or for connecting a flashing or warning light (max. 5 A/250 V AC)
- electronic buzzer
- Battery charging circuit for mains-independent operation of the alarm system using an optional battery
