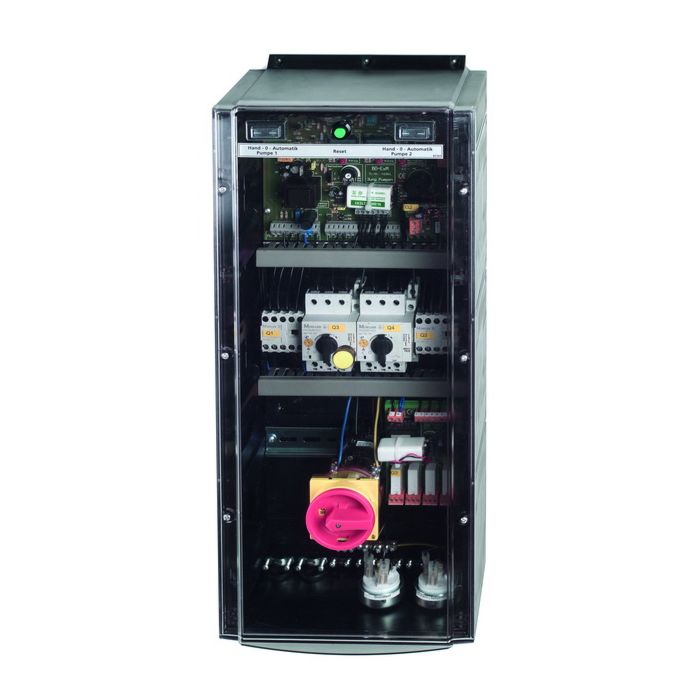

Jung Basiclogo control JP45743 BD 610 EC, for double system
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 250
Part Number: JP45743
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Jung Basiclogo control JP45743
- for level-dependent switching on and off of two direct-starting AC submersible pumps
- Automatically alternating switching on of pump 1 and pump 2
- Optional activation of the idle pump in case of peak load or fault as well as staggered start-up after power failure
- Operating voltage 1/N/PEx230 V
- 50Hz
- Housing with transparent door
- IP44
- 430x250x155mm
- 2x Motor contactors 4
- 0kW/400V
- 2 motor fuses 10 A Neozed
- 3x control fuses 2 A for 230V control circuits
- 1 AC output 2 A
- 230V
- 2 manual-0-automatic selector switches
- Indicator lights for operation of pump 1 and pump 2
- Flood alarm system (network dependent)
- Potential-free normally open contact for remote fault reporting
- or for connecting a flashing or warning light (max. 5 A/250 V AC)
- electronic buzzer
- Battery charging circuit for mains-independent operation of the alarm system using an optional battery
