Jung E seal control device JP00249 for explosion-proof pumps
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 100
Part Number: JP00249
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

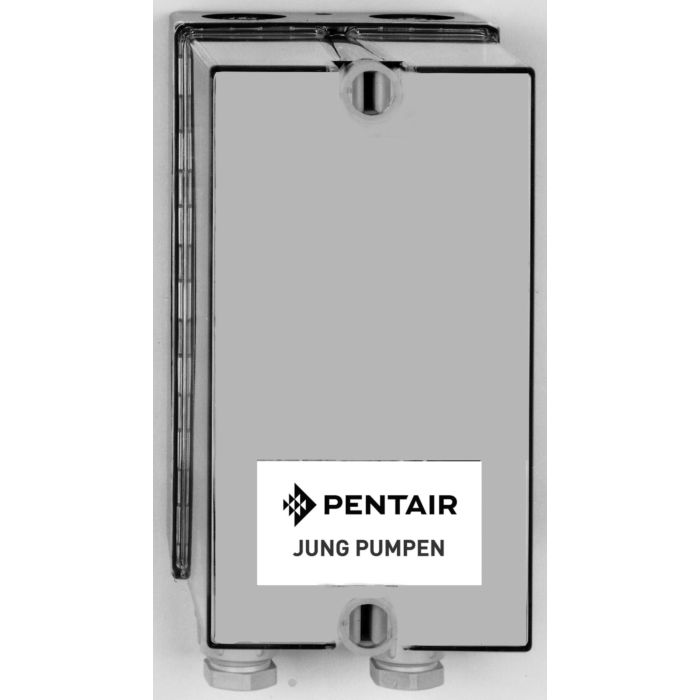

Jung E seal control device JP00249
- Control for checking the tightness of the oil chamber arranged between the motor and pump in explosion-proof submersible pumps of the US 73 Ex and UFK series
- If water enters the oil chamber, a red warning lamp lights up
- Explosion protection (Zone 1 and 2) Ex II (2) G (Ex ia) IIC/IIB
- Control for 1N/PE x 230 V
- 50 Hz operating voltage consisting of 1x ISO housing with transparent cover
- Dimensions with screw connection (HxWxD) 180 x 130 x 100 mm
- IP 54 1x electronics with transformer and indicator lamp
- 1 x special electrode with 10 m cable
- 1x potential-free closer for fault messages
