Jung lifting system Compli 1025/4 S1 HL JP50840, 10m, 400 V
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 1600
Part Number: JP50840
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

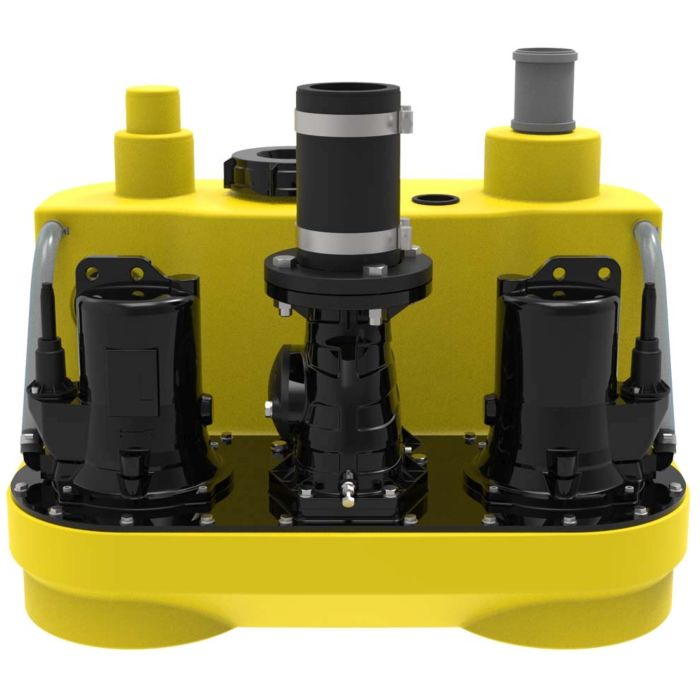

Jung lifting system Compli 1025/4 S1 HL JP50840
- 400 V
- pump vertical single-stage
- Free passage 70 mm
- pressure pipe DN 100
- Bearings Ball bearings, grease lubricated
- engine housing gray cast iron
- pump housing gray cast iron
- Submersible yes
- pressure outlet DN 80
- container volume 117 l
- weight 133 kg
- Voltage 3/N/PE~400 V
- Motor power P1: 3 kW
- Engine power P2: 2.4 kW
- current 5.1 A
- power cable 10m H07RN-F
- wires 6G1.5
- protection class IP 68
- insulation class F
- winding thermostat yes
- CEE-16A plug
