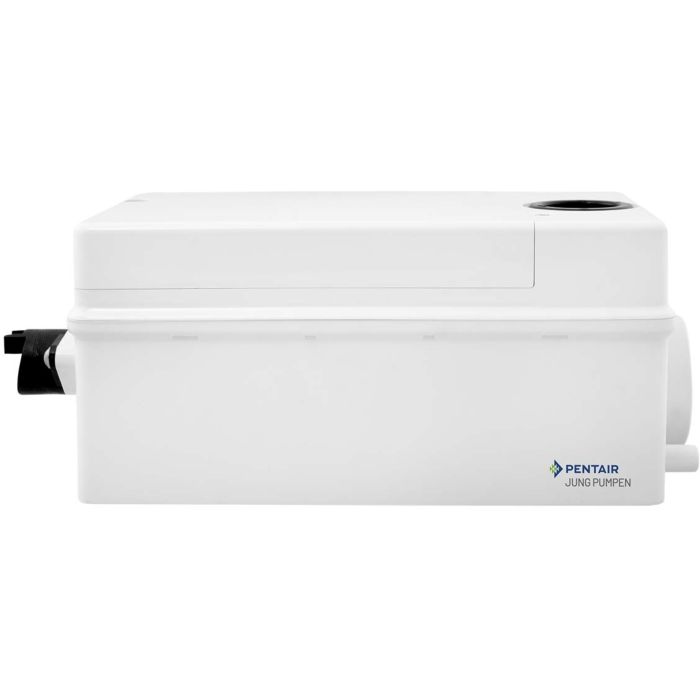

Jung Hebefix waste water lifting station JP48727 H max. 5 m, Q max. 4.3 m3/h
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 3500
Part Number: JP48727
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Jung Hebefix waste water lifting system JP48727
- TÜV type tested according to DIN EN 12050
- ready to plug in
- is suitable for faecal-free waste water above and below the backflow level
- Can be installed in commercially available pre-wall systems
- Hand wash basins can be connected
- Shower
- Bidet and water softening systems for detached and semi-detached houses
- disposes of condensed water from refrigerated counters and air conditioning systems
- Waste water from dishwashers
- in tea kitchens and hot water up to 55 °C or briefly 70 °C
- Weight: 4kg
- Container: 135 x 320 x 176mm
- 1 pressure outlet
- 2 inlet nozzles 50 mm
- 1 inlet above 40 mm
- Connection Cuffs
- plug-in seals
- outlet elbow (elastomer)
- integrated check valve
- Ventilation with activated carbon filter
- submersible pump
- vertical
- single stage
- safe to run dry
- mounted in the container
- automatically turning on again
- temperature-dependent motor protection
- Primary seal: mechanical seal
- Motor housing and rotor shaft made of stainless steel
- Plastic pump housing and impeller
- Degree of protection: IP 44
- free passage: 10 mm
- Flow rate: Q max 4
- 3 cbm/h
- Head: H max 5 m
- Motor power: P2 = 110W
- Speed: 2900 rpm
- Voltage: 1/N/PE 230V
- 50Hz
- Cable: 2 m H05VV-F 3G0
- 75
Downloads (6)
Product Safety
Manufacturer
JUNG PUMPEN GmbH
E-Mail
info@jung-pumpen.de
Address
Industriestraße 4-6
33803 Steinhagen
Germany
