Jung Hebefix above-ground container JP48189 200-50, as a single or double system
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 3500
Part Number: JP48189
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

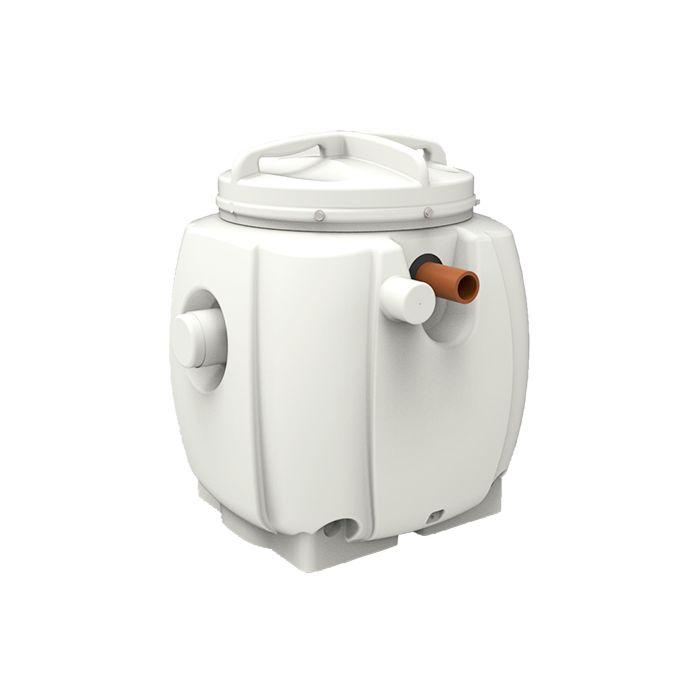

Jung Hebefix above-ground container JP48189
- Collection container made of PE with a screwable cover for two type U3K dirt water pumps
- U5K
- U6K
- US62
- US73
- US102
- US 103
- US73 Ex or US 103 Ex
- can also be used as a single station
- but then choose a pump with an attached float switch
- has 1 nozzle DN 100 and 2 nozzles DN 150/100 for the inlet
- for the ventilation a nozzle DN 70 and for the pressure line a thread 1 1/4'
- two check valves with elastic connectors are included
- 820x840x840mm
- Height of inlet connection: 440 mm
- Height of pressure outlet: 565 mm
- Height of ventilation socket DN 70: 565 mm
- Weight: 26kg
- Volume: 240L
