Jung HighLogo control JP47987 1-00 E
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 250
Part Number: JP47987
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

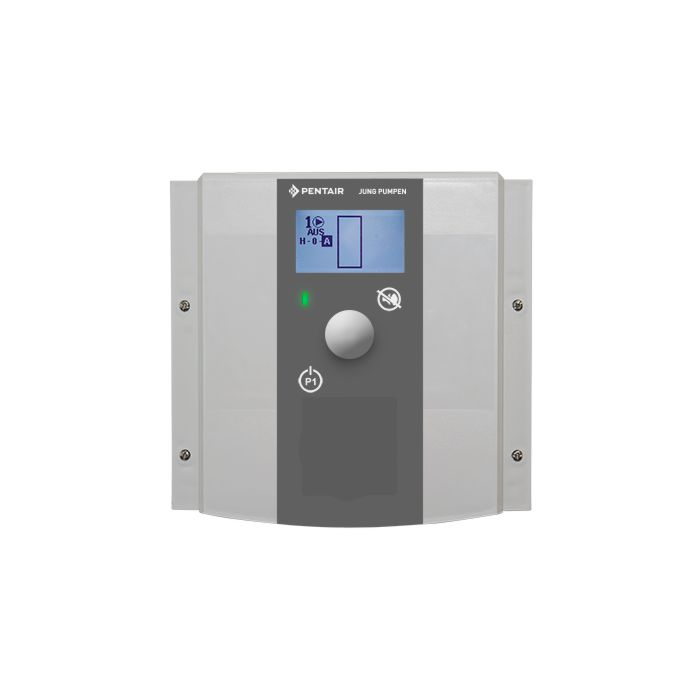

Jung HighLogo control JP47987
- for level-dependent switching of a direct starting
- also explosion-proof three-phase pump
- Two independent level sensors for on/off switching function as standard
- Automatic emergency shutdown with alarm message for increased safety
- ATEX-compliant monitoring of motor temperature and running time is selectable
- Operating voltage 3/N/PEx230/400 V
- 50Hz
- Housing with door
- IP44
- 250x250x155mm
- Motor contactor 4
- 0kW/400V
- 1 mechanical overcurrent relay 2
- 4-4
- 0 A for standard compliant 3-phase motor current monitoring
- Manual-0-Automatic button
- Reset button for alarm
- 2 compressed air bells with 10 m air line each
- 2 pressure switches
- Dry-run protection
- Terminal blocks for mains connection
- All settings are menu-driven via a multifunction wheel and are displayed in plain text on an illuminated graphic display
