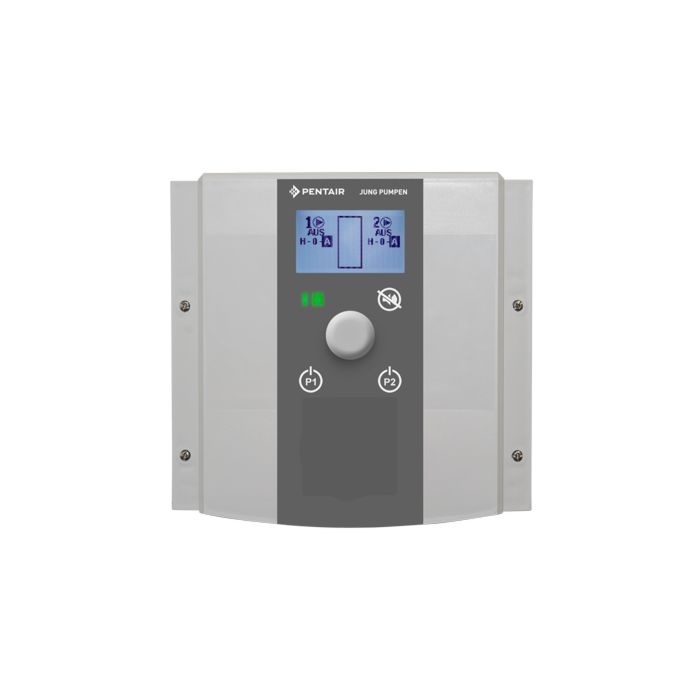

Jung HighLogo control JP47996 2-00 E, back-up fuse 20 A

Jung HighLogo control JP47996

• for level-dependent switching of 2x direct starting
• also explosion-proof three-phase pumps
• 2 independent level sensors for on/off switching function as standard
• Automatic emergency shutdown with alarm message for increased safety
• Automatically alternating switching on of pump 1 and pump 2
• ATEX-compliant monitoring of motor temperature and running time is selectable
• Operating voltage 3/N/P Ex230/230 V
• 50 Hz enclosure with door
• IP44
• 250x250x155mm
• 2 Motor contactors 4
• 0kW/230V
• 2 mechanical motor protection switches 2
• 4-4
• 0 A for standard compliant 3-phase motor current monitoring
• 2 manual-0-automatic buttons
• Reset button for alarm
• 2 compressed air bells with 10m air line each
• 2 pressure switches
• Dry-run protection
• Terminal blocks for mains connection
• All settings are menu-guided via a multifunction wheel and displayed in plain text on an illuminated graphic display
