Jung HighLogo control JP47997 2-00, back-up fuse 16 A
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 250
Part Number: JP47997
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

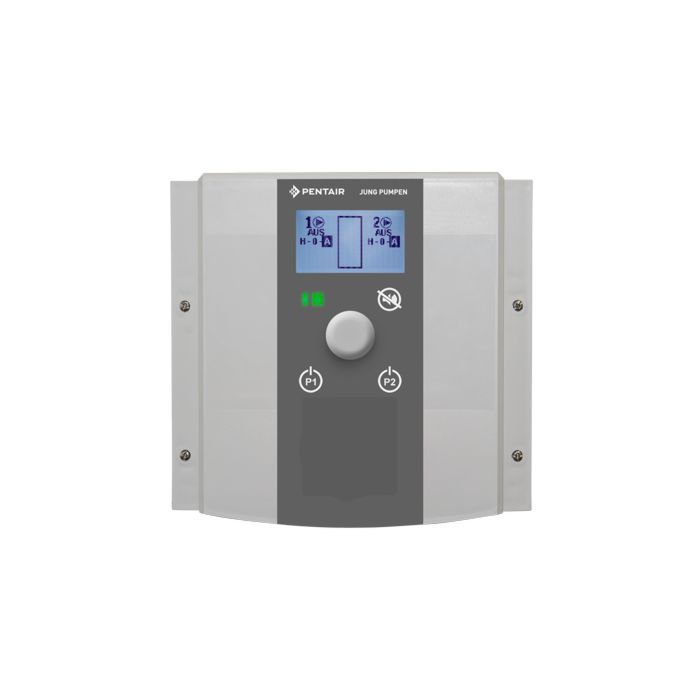

Jung HighLogo control JP47997
- for level-dependent switching of 2x direct starting
- also explosion-proof three-phase pumps
- 2 independent level sensors for on/off switching function as standard
- Automatic emergency shutdown with alarm message for increased safety
- Automatically alternating switching on of pump 1 and pump 2
- ATEX-compliant monitoring of motor temperature and running time is selectable
- Operating voltage 3/N/P Ex230/400 V
- 50 Hz enclosure with door
- IP44
- 250x250x155mm
- 2 Motor contactors 4
- 0kW/400V
- 2 mechanical motor protection switches 2
- 4-4
- 0 A for standard compliant 3-phase motor current monitoring
- 2 manual-0-automatic buttons
- Reset button for alarm
- 2 compressed air bells with 10m air line each
- 2 pressure switches
- Dry-run protection
- Terminal blocks for mains connection
- All settings are menu-guided via a multifunction wheel and displayed in plain text on an illuminated graphic display
