Jung auxiliary switching device JP16720 180 x 130 x 100 mm, for separation
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 10
Part Number: JP16720
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

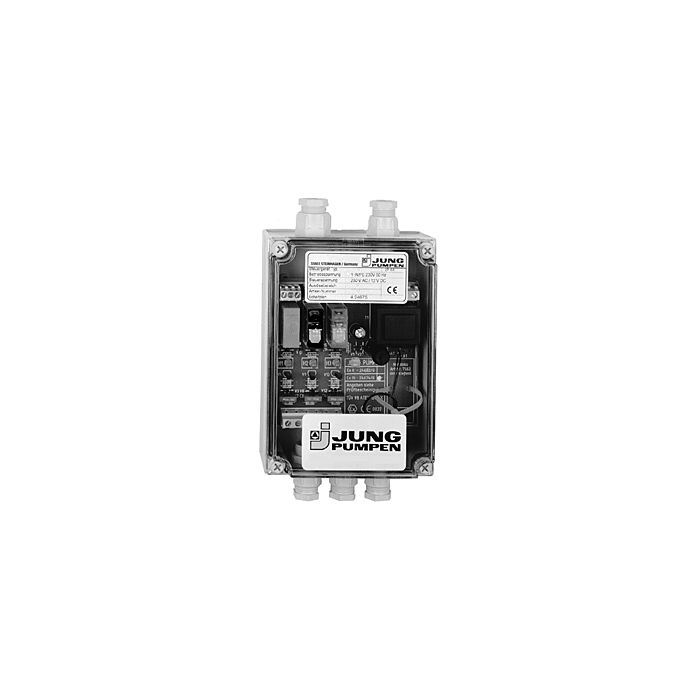

Jung auxiliary switching device JP16720
- for galvanic isolation between the ball immersion switches used in hazardous areas and a controller
- The auxiliary switching device places the diving switches or other control devices in 'intrinsically safe circuits' with protection class EEx ib IIC
- since only the control circuits are intrinsically safe
- The device must be installed outside of the potentially explosive area
- Control for 1N/PE x 230 V
- 50 Hz operating voltage
- consisting of 1 ISO housing with transparent cover
- IP 54 (HxWxD) 180 x 130 x 100 mm
- with PG screw connections H= 220 mm 1x auxiliary switching module Ex II (with 2 intrinsically safe circuits)
- 1x sticker to identify the intrinsically safe cables
- the auxiliary switching device requires its own power supply
- In the event of a mains voltage failure, the transmission of a switching command is only possible via the battery, which is available as an accessory
- Connection options and integrated charging circuit are already available as standard
- A battery must also be used to supply the alarm system in the downstream control system independently of the mains
