Jung Multistream sewage pump JP09629 15/2 A1, EX, 400 V, with explosion protection
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 3500
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details

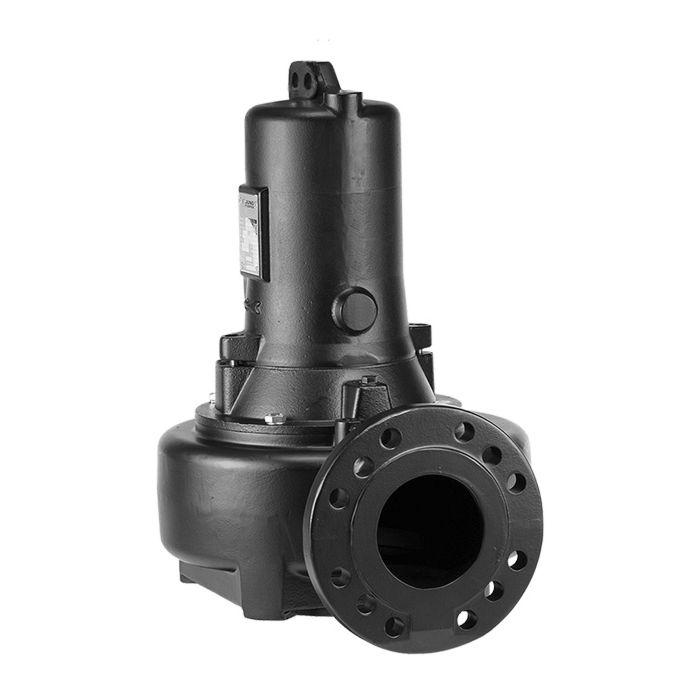

Jung Multistream Sewage Pump JP09629
- vertical single-stage submersible motor pump with horizontal pressure outlet and high operational reliability
- LGA type tested according to DIN EN 12050
- Adjustable axial gap with grooves that is not prone to clogging
- run-dry safe
- Silicon carbide mechanical seal on the medium side and double radial shaft seal ring on the motor side with oil chamber and seal inspection option
- Longitudinally watertight cast cable entry with pluggable cable connection
- Impeller: single channel
- Free passage 40 mm
- Pressure connection DN 65 for PN 6/PN 10
- Pumped medium max 40 °C
- Flow rate Q: max 38 m3/h
- Head H: max 13 m
- Weight 41kg
- Voltage: 3/PEx400V
- 50Hz
- Current: 2
- 7 A
- Power P2: 1
- 1kW
- Speed 2900 rpm
- direct launch type
- Degree of protection IP 68
- Motor protection: winding thermostats Cable: 10m H07 RN-F 6G 1
- 5
- Ex marking: II2G Ex db IIB T4 Gb
