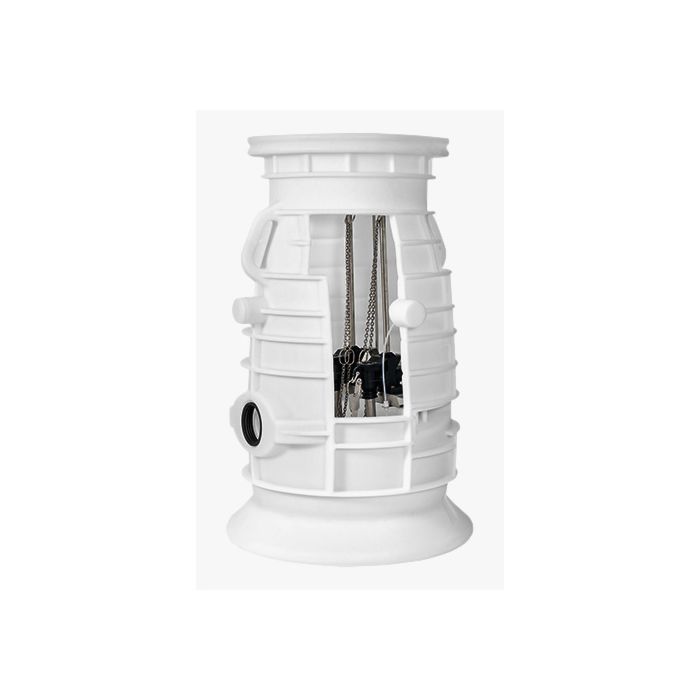

Jung Pks plastic shaft JP47345 B 800 D32, double pump station, buoyancy-proof, PE, white
Available for order
delivery time: 10-28 working days
Shipping Cost Points: 3500
Part Number: JP47345
Questions about the article?
+49 241-51832611
Mon. - Thu. 8.00 am to 6.00 pm, Fri. 8.00 am to 3.00 pm
Details
Jung Pks plastic shaft JP47345
- passable up to class B 125
- Pump shaft for accommodating two MultiCut submersible sewage pumps with/without explosion protection through a pressure pipe unit DN 32
- deposit-free collection space
- 2 sleeves DN 150 for the inlet
- ready for connection with seal
- 3 pipe sockets DN 100 for ventilation or cable duct
- Manhole components made of corrosion-resistant materials
- Traverse and coupling system DN 32 made of polyphthalamide (PPA)
- Stainless steel ball valve with extension and safety lever
- Sliding tube for pump guidance with bracket made of stainless steel
- Stainless steel pressure line outlet 1 1/4'
- with optional PSV extensions, the shaft can be installed up to an installation depth of 2
- 75 m (class B) or 2
- 95 m (class A) can be extended
- Level differences can be compensated with a support ring
- for cleaning and maintenance, the pressure pipe unit is pulled out of the shaft complete with pump and ball check valve
- Dimensions without cover: Nominal diameter: 800 mm
- Total height 1610mm
- Sole inlet from above: 1160 mm
- Sole pressure nozzle from above: 930 mm
- Tank volume: 740 l
- Residual volume: 85 l
- Weight: 79kg
